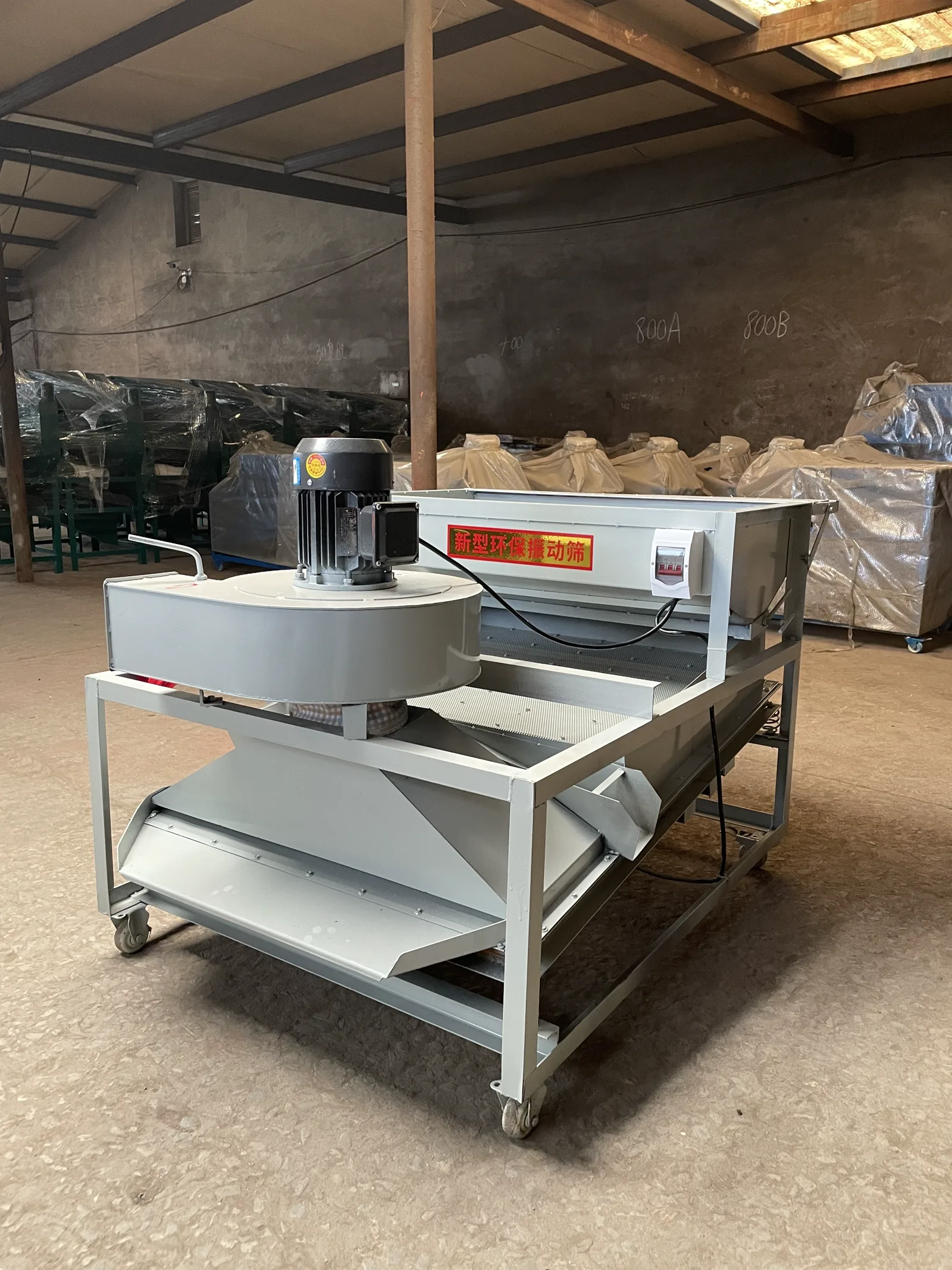

100 Type Oilseed
Vibrating Screen
A 800–1000 kg/h vibrating cleaning screen with built-in dust aspiration —
removes stones, hulls, chaff and dust from oilseeds, sized for medium oil processing lines.
Why Seed Cleaning Matters Before Oil Pressing
During harvest, transport and storage, oilseeds pick up stalks, hulls, rope, stones, metal, sand and dust. Removing these impurities before pressing protects your equipment and directly improves oil yield and quality.
Protect Your Oil Press
Stones, metal and sand wear and damage press screws, cages and wearing parts. Pre-cleaning removes them and extends machine life.
Increase Oil Yield
Chaff, hulls and dust absorb free oil and lower extraction efficiency. Clean seed releases more oil from every batch.
Improve Oil & Cake Quality
Removing foreign matter gives clearer oil, cleaner press cake and higher-value by-products.
Stable, Rated Throughput
A consistent, impurity-free feed keeps downstream roasting, pressing and refining running smoothly at full capacity.
Working Principle
The vibrating screen combines a reciprocating double-deck screen with controlled air aspiration. Vibration separates impurities by size while an integrated blower lifts away light dust and chaff — comprehensive cleaning in a single pass.
Key Components
The main working parts of the VS-100 oilseed vibrating cleaning screen.
Key Features
Engineered to clean oilseeds efficiently and quietly before roasting and pressing.
Double-Deck Vibrating Screen
Two screen layers remove both oversize and undersize impurities in one pass; mesh is interchangeable for different seeds.
Built-in Dust Aspiration
An integrated blower removes dust and light chaff — no separate aspirator needed.
Adjustable Airflow
An air-volume handle tunes air separation to each seed type and impurity load.
Pure-Copper Motor, Low Noise
Eco-friendly, quiet design with pure-copper vibration and fan motors for stable operation.
Mobile & Compact
Caster wheels and a compact frame make positioning easy in any small-to-medium oil mill.
Technical Specifications
The VS-100 (800–1000 kg/h) highlighted below within the oilseed vibrating screen range. An interchangeable-mesh option is available; final specifications are confirmed per your seed type and throughput.
| Model | Capacity | Weight | Vibration Motor | Blower Motor | Dimensions (L×W×H) |
|---|---|---|---|---|---|
| VS-60 | 300–400 kg/h | 80 kg | 0.55 kW | 1.5 kW | 1250 × 680 × 1060 mm |
| VS-80 | 400–600 kg/h | 110 kg | 0.55 kW | 1.5 kW | 1300 × 760 × 1150 mm |
| VS-100 | 800–1000 kg/h | 160 kg | 1.1 kW | 1.5 kW | 1700 × 1020 × 1090 mm |
Double-deck screen with built-in dust-removal blower and adjustable airflow. Pure-copper motors, mobile caster frame. Custom mesh and capacities available. Prices on request.
Applications
Cleans and grades a wide range of oil-bearing seeds before roasting or pressing.
Rapeseed / Canola
Removing pods, stalks and dust from rapeseed before pressing.
Peanut
Separating shells, stones and soil from peanuts and groundnuts.
Sesame
Gentle cleaning of fine sesame seed with adjustable airflow.
Sunflower & Soybean
Pre-cleaning sunflower, soybean and other oilseeds for stable pressing.
Need a VS-100 Vibrating Screen for Your Oil Mill?
Tell us your seed type, daily capacity and project location. Our engineers will recommend the right cleaning and pretreatment equipment.
