300 Vacuum Dehydration & Oil Cooling Machine
A combined stainless-steel unit that first dries oil under vacuum, then cools it — preparing warm processed oil for stable storage and bottling in a single line.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Function | Combined vacuum dehydration and oil cooling |
| Process Method | Vacuum drying followed by oil cooling |
| Material of Construction | Stainless steel (oil-contact parts) |

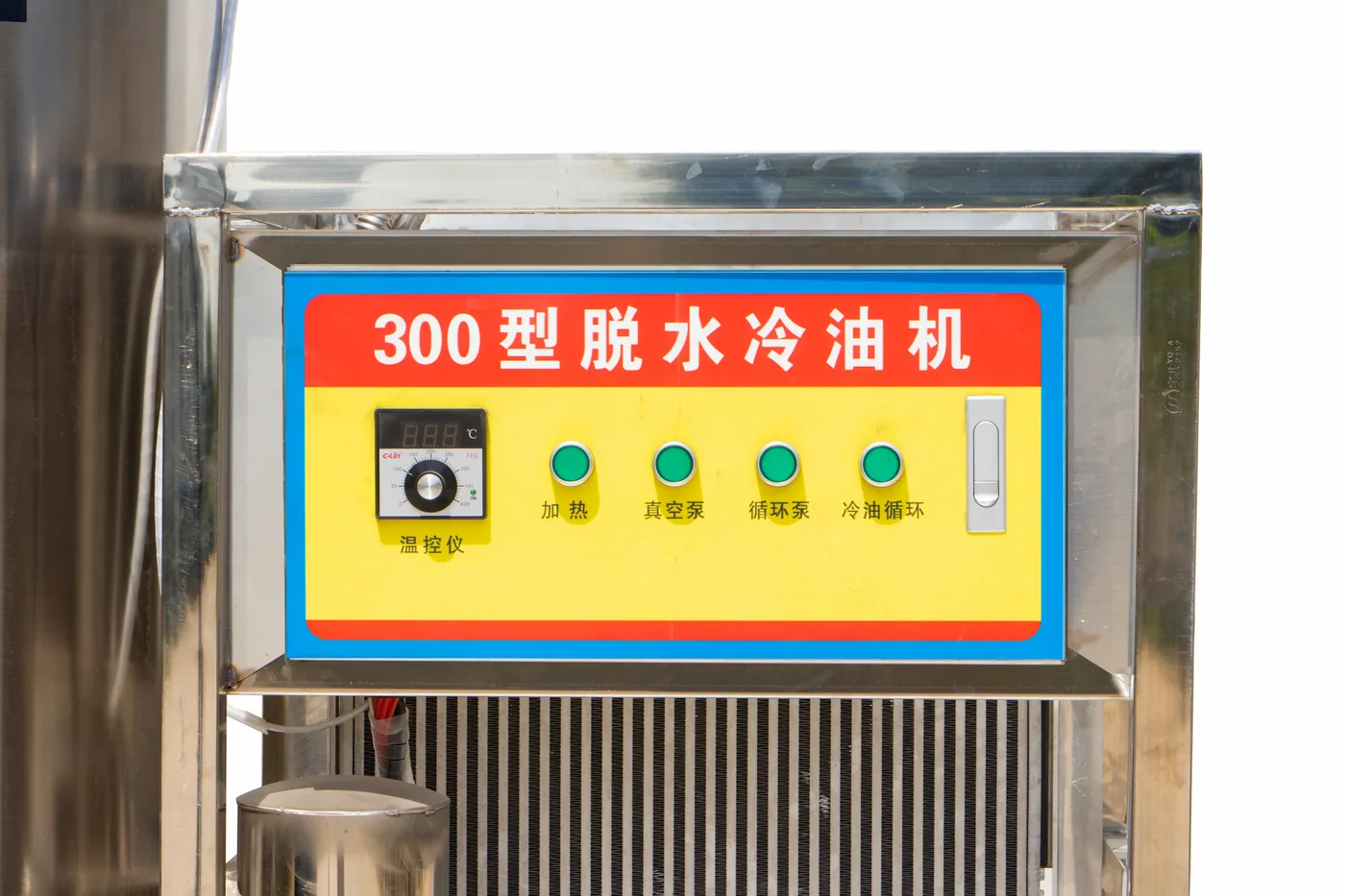

| Control | Operator-managed process controls |
| Mounting | Skid-mounted unit |
| Capacity / Power / Dimensions | Available on request |
Function & Working Principle
Removes moisture and lowers oil temperature within one integrated unit.
Dries oil under reduced pressure to limit heat exposure.
Cools the dried oil toward a storage-friendly temperature.
Oil-wetted parts are stainless steel for hygiene and corrosion resistance.

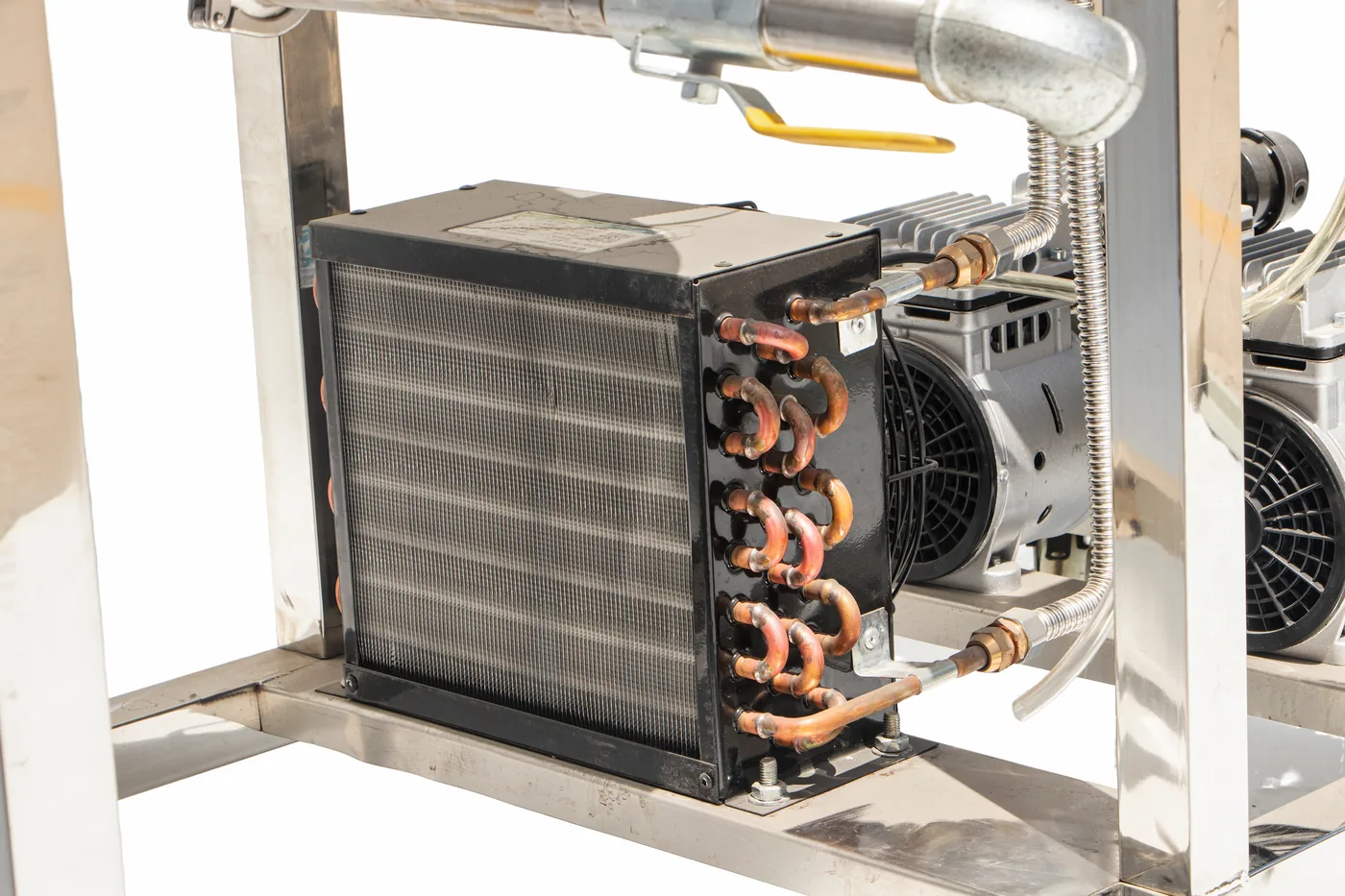

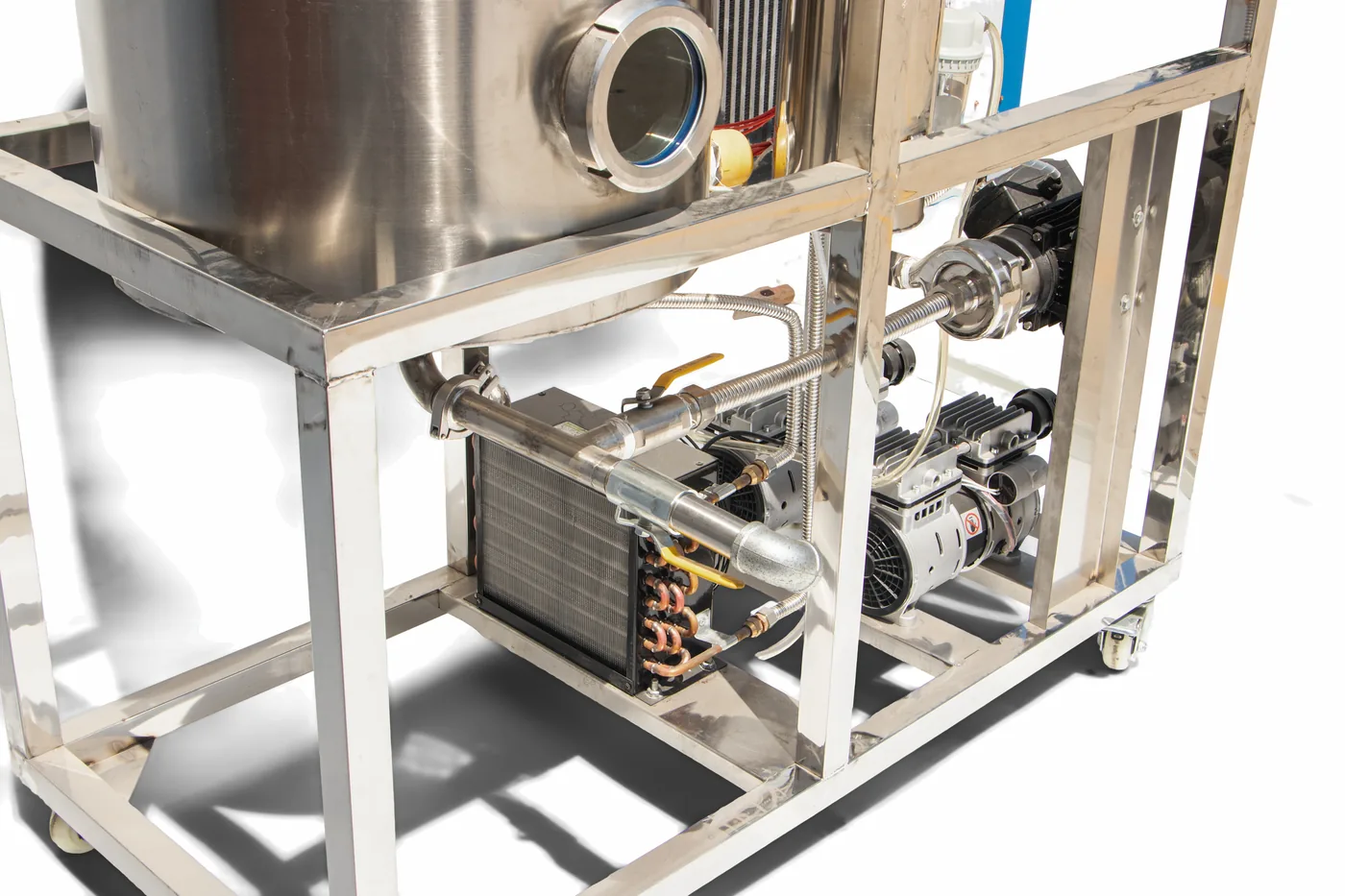

Integrates the vacuum source and cooling-water arrangement needed for both steps.
Supplied as a skid-mounted unit for integration into the oil line.
Working principle
Warm processed oil enters the dehydration section.
Reduced pressure draws moisture out of the oil at a moderate temperature.
The dried oil is cooled to a more storage-friendly temperature.
Dried, cooled oil is sent on for storage or bottling.

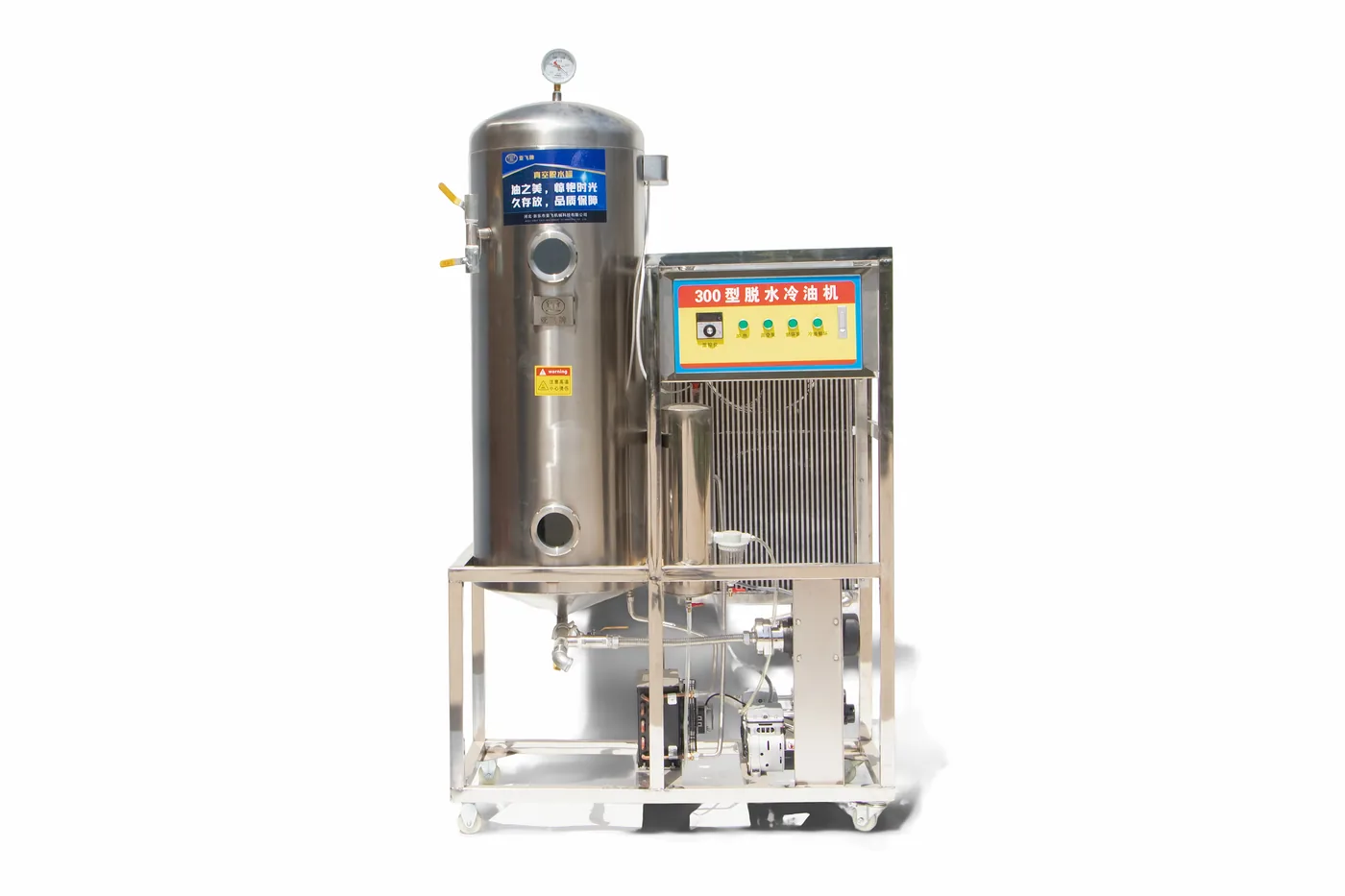

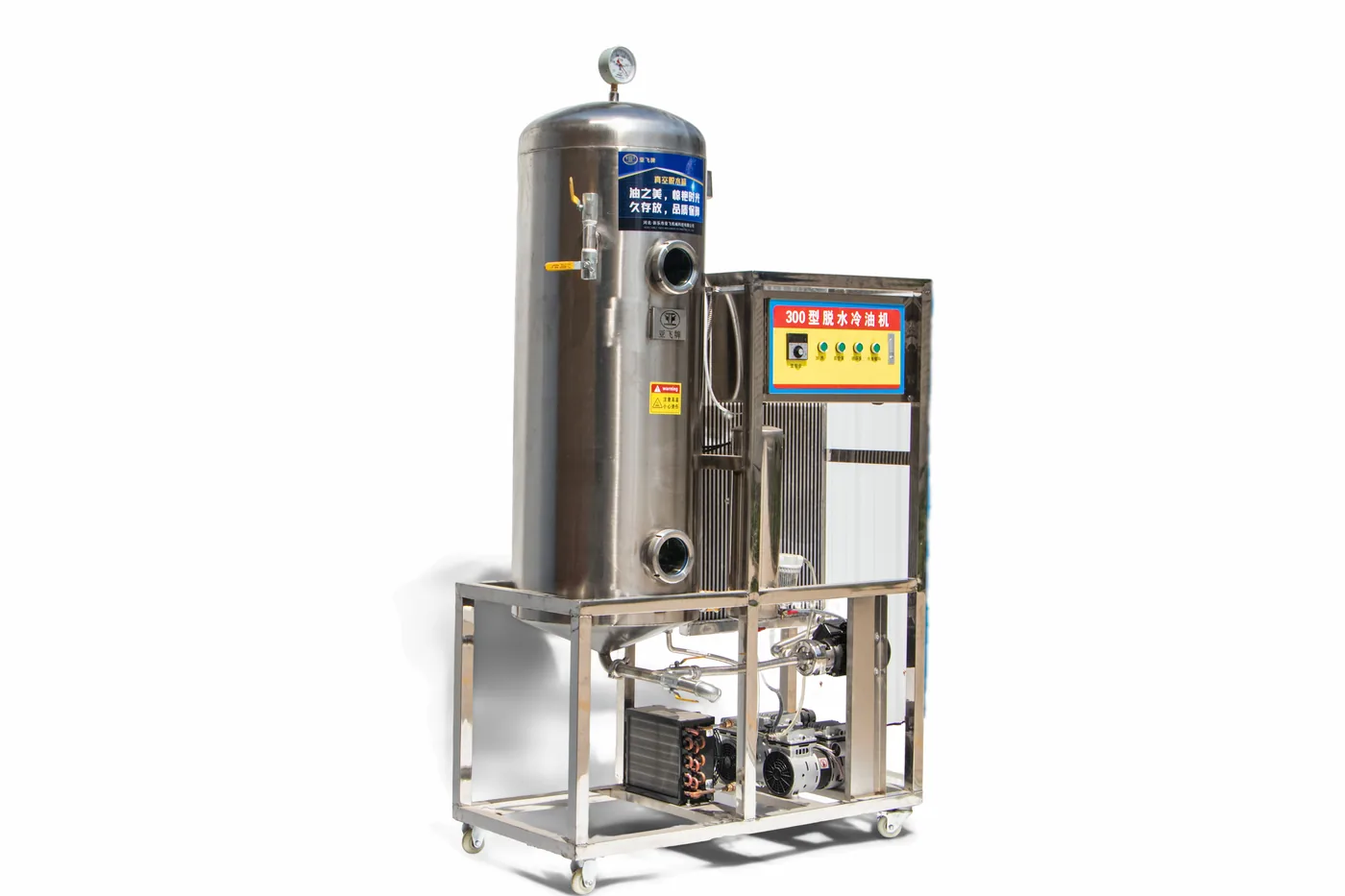

Product Photos
Applications & Suitable Materials
Suited to lines that need both drying and cooling before oil goes to storage or packaging.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the 300 Vacuum Dehydration & Oil Cooling Machine process?
It is suited to Edible oil pressing lines, Oil refining plants, Pre-storage oil conditioning, Pre-bottling preparation and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the 300 Vacuum Dehydration & Oil Cooling Machine suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
Why remove moisture under vacuum instead of high heat?
Under vacuum, water evaporates at a lower temperature, so the oil is dried gently without the heat damage that high-temperature drying would cause.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
