A-Type Oil Refining Machine
A batch refining unit that takes crude pressed or extracted oil through degumming, neutralizing and decolorizing — turning cloudy raw oil into clear, refined edible oil.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Process Type | Batch / semi-batch chemical refining |
| Refining Stages | Degumming, neutralizing, washing/drying, decolorizing |
| Oil-Contact Construction | Stainless steel contact surfaces |
| Heating | Heating tube / thermal-oil heating |
| Mixing | Mechanical stirring in reaction tanks |
| Capacity / Power / Dimensions | Available on request |
Function & Working Principle

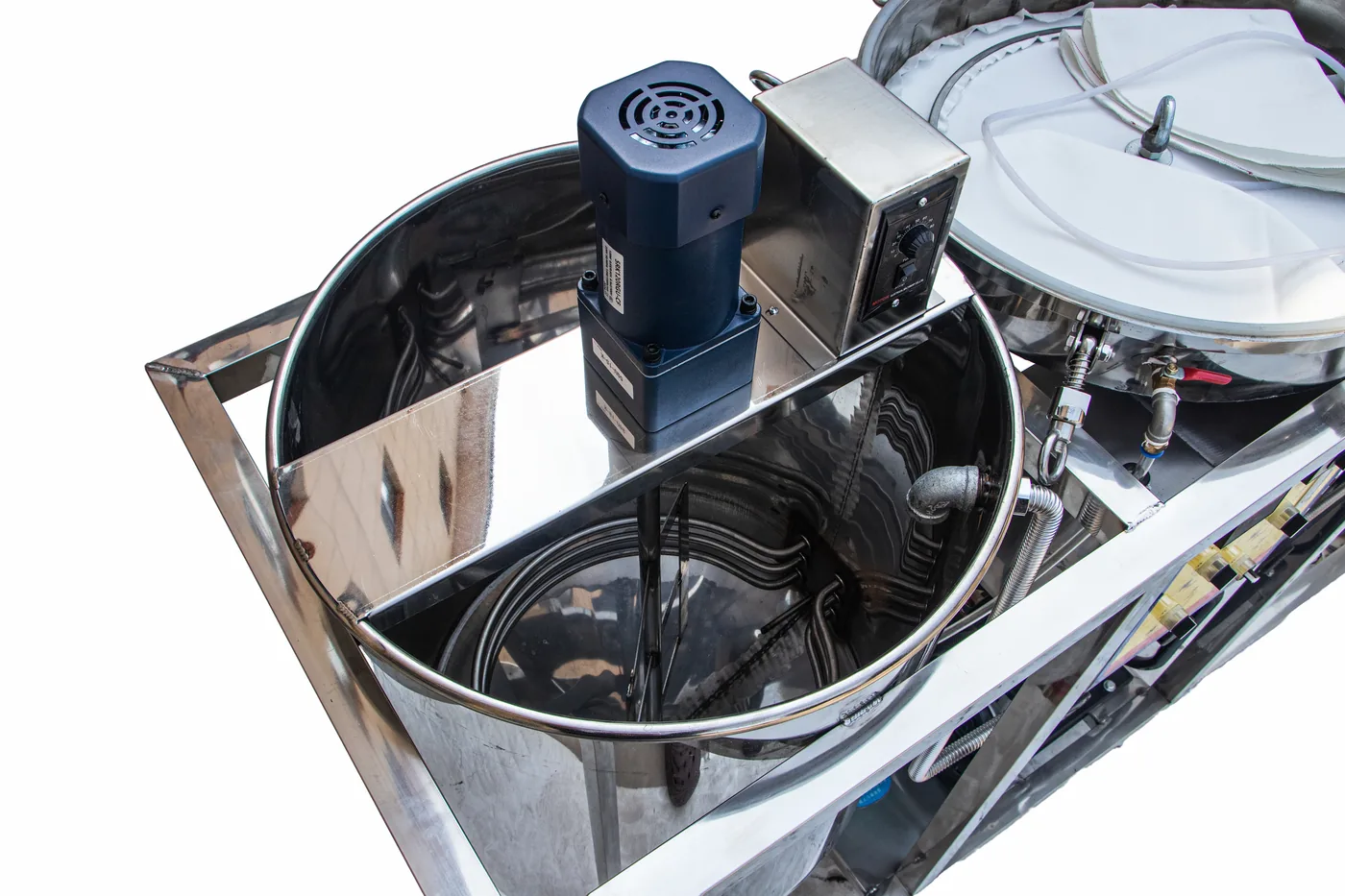

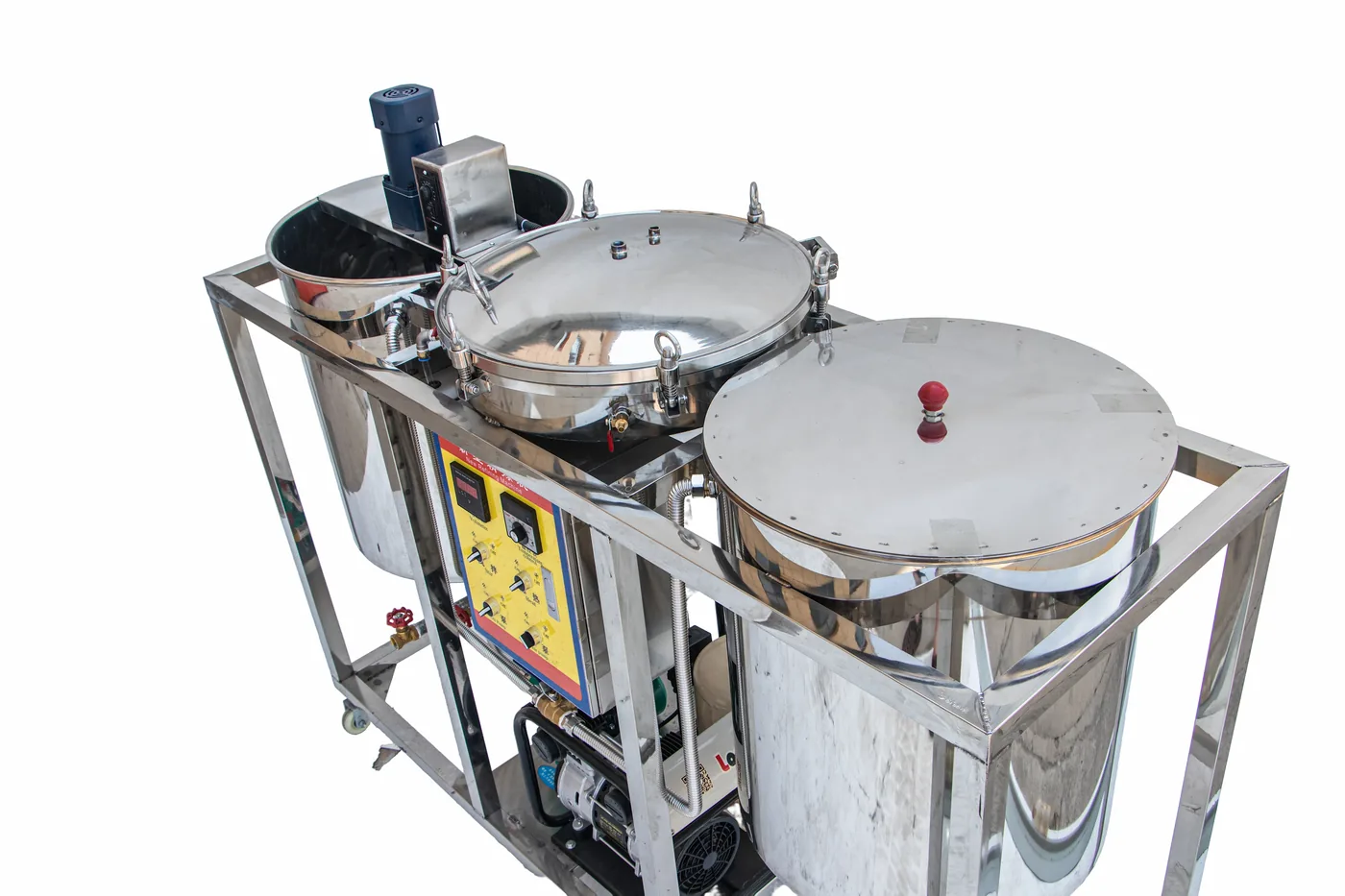

Mechanical agitation keeps water, alkali or bleaching earth evenly dispersed so reactions proceed uniformly throughout the batch.
Tapered tank bottoms let hydrated gums, soapstock and spent earth collect and be discharged, separating impurities from the clarified oil above.
Steam or thermal heating brings each batch to the working temperature needed for hydration, neutralization and bleaching.
Surfaces in contact with the oil use stainless steel to resist corrosion from acids, alkali and hot oil and to suit food-grade processing.
Degumming, neutralizing and decolorizing are arranged as connected stages so oil can be transferred between treatments in sequence.

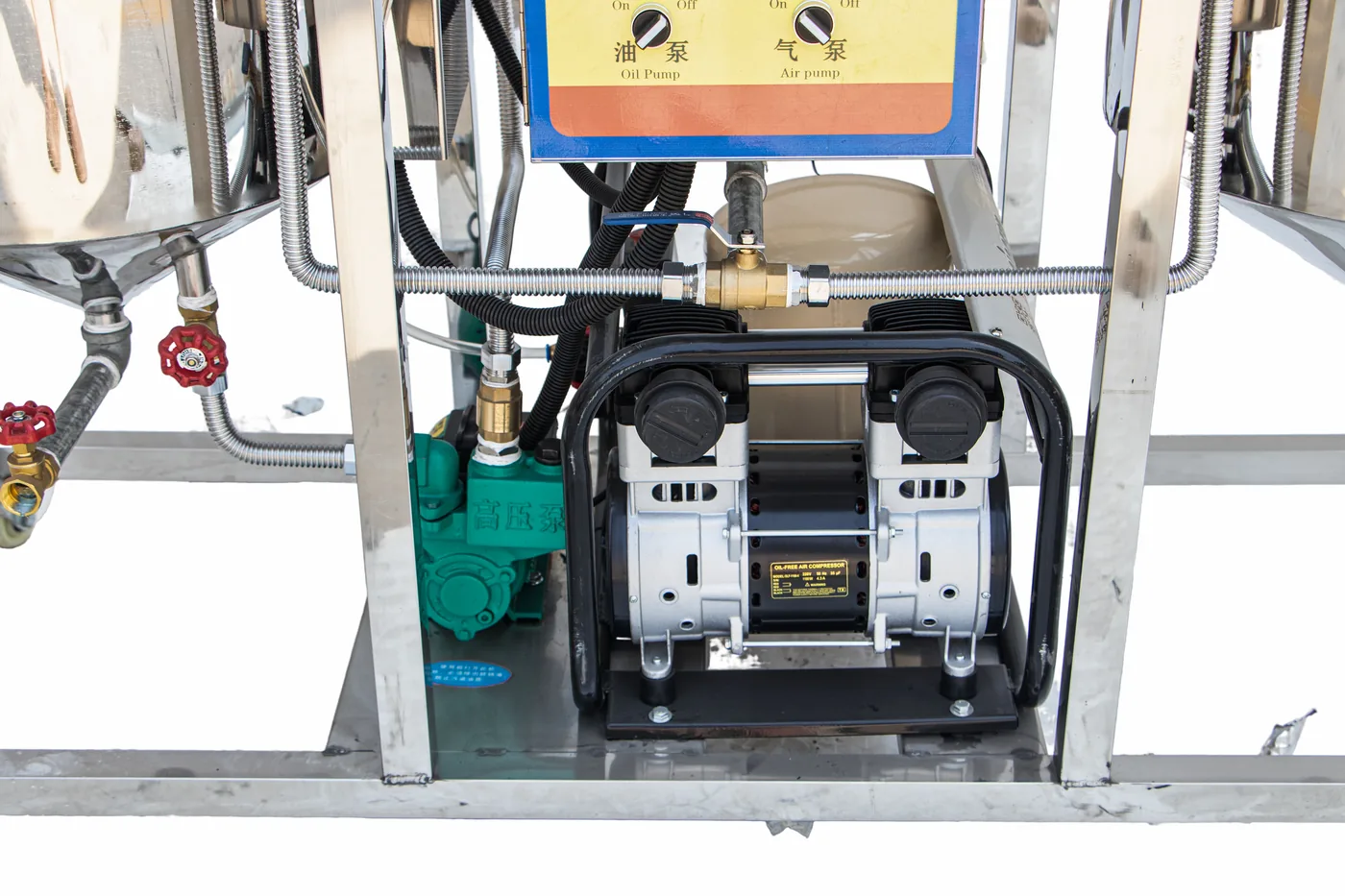

Pumps move oil between tanks and assist in adding reagents, supporting orderly batch handling.
Working principle
Water or acid is mixed into the heated oil so phospholipids (gums) hydrate, swell and become insoluble, then settle out and are drawn from the conical tank bottom.
An alkali is dosed and stirred in to react with free fatty acids, forming soapstock that separates from the oil and is removed, lowering acidity.
The neutralized oil is washed to carry away residual soap and traces of alkali, then heated under reduced conditions to remove moisture before bleaching.
Bleaching earth is mixed into the heated oil to adsorb pigments and remaining trace impurities, then filtered off to leave a clear, light-colored oil.

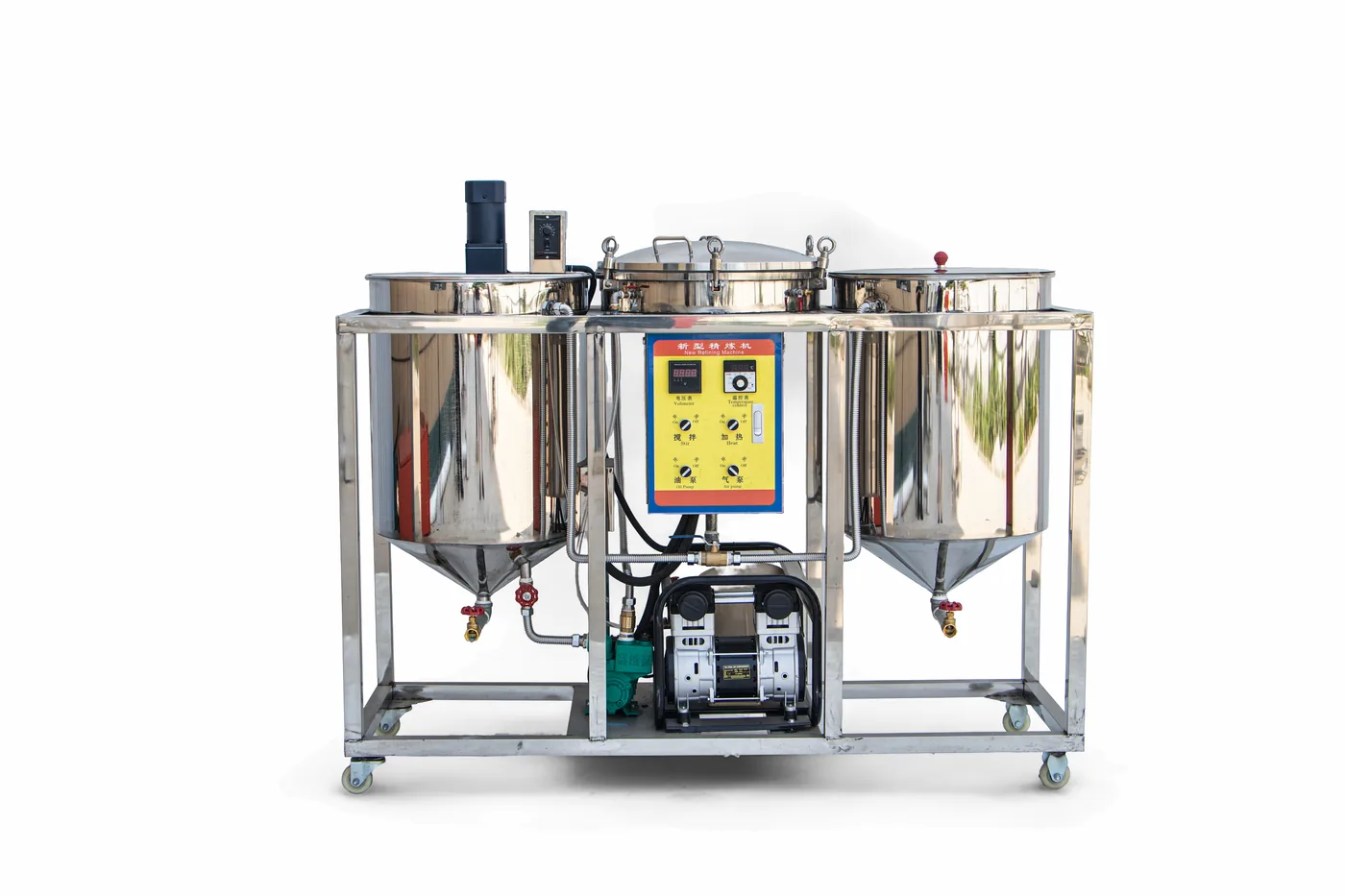

Product Photos
Demonstration Video
Watch the A-Type Oil Refining Machine running — see the machine in operation. More on our Product Videos page.
Applications & Suitable Materials
Suited to small and medium edible-oil producers refining crude oil from a range of oilseeds.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the A-Type Oil Refining Machine process?
It is suited to Refining crude pressed soybean oil, Refining crude rapeseed / canola oil, Refining crude peanut (groundnut) oil, Refining crude sunflower oil and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the A-Type Oil Refining Machine suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
What impurities does refining remove?
Refining removes phospholipids (gums), free fatty acids, pigments and trace solids that cause cloudiness, off-flavors and short shelf life, leaving clearer, more stable oil.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
