B-Type Oil Refining Machine
A batch refining unit in an alternate configuration — carrying crude pressed or extracted oil through degumming, neutralizing and decolorizing to produce clear, refined oil.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Process Type | Batch / semi-batch chemical refining (B-type configuration) |
| Refining Stages | Degumming, neutralizing, washing/drying, decolorizing |
| Oil-Contact Construction | Stainless steel contact surfaces |
| Heating | Heating tube / thermal-oil heating |
| Mixing | Mechanical stirring in reaction tanks |
| Capacity / Power / Dimensions | Available on request |
Function & Working Principle

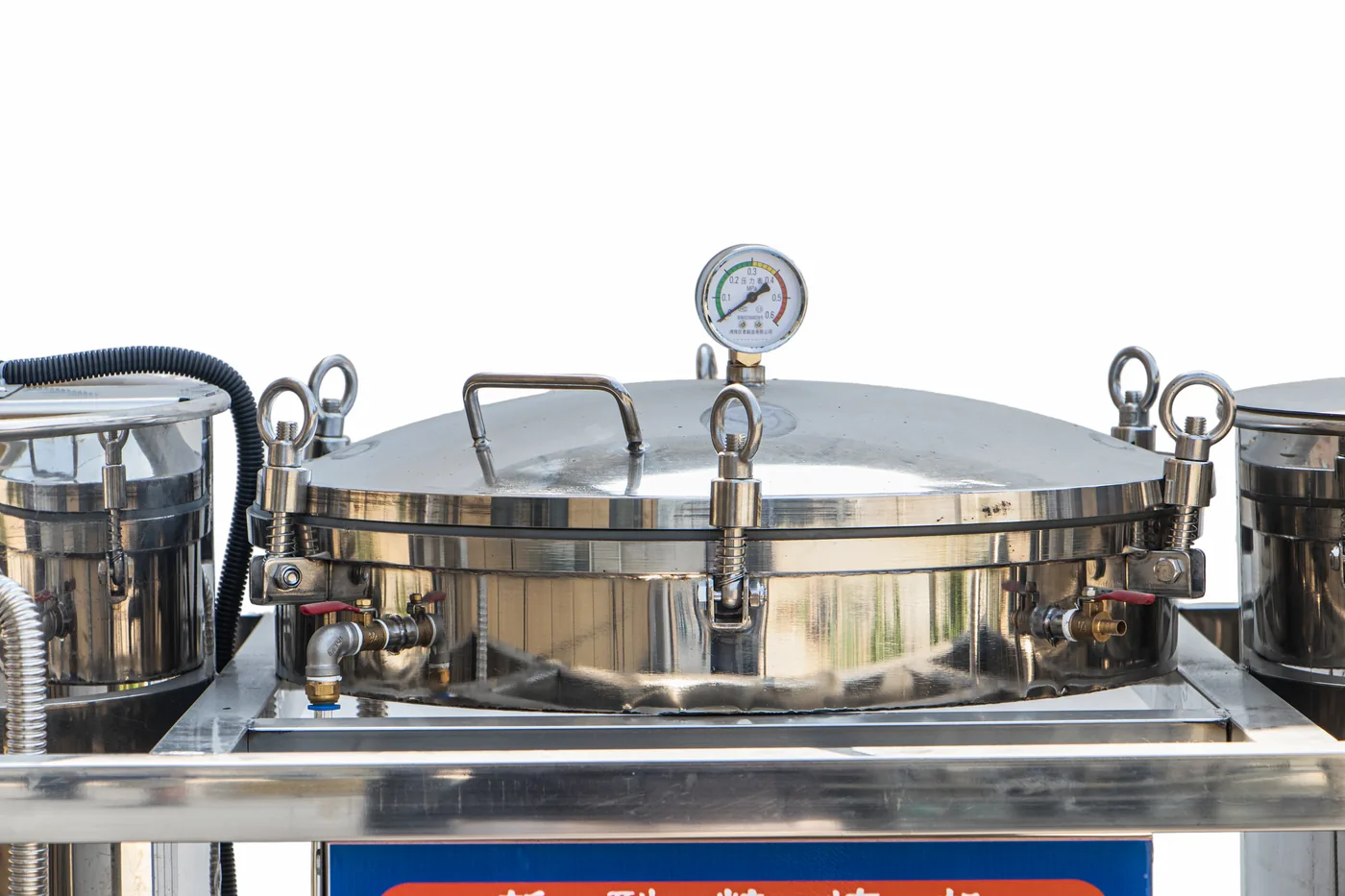

Refining tanks are arranged in the B-Type layout to suit different workshop and process requirements while keeping the standard refining stages.

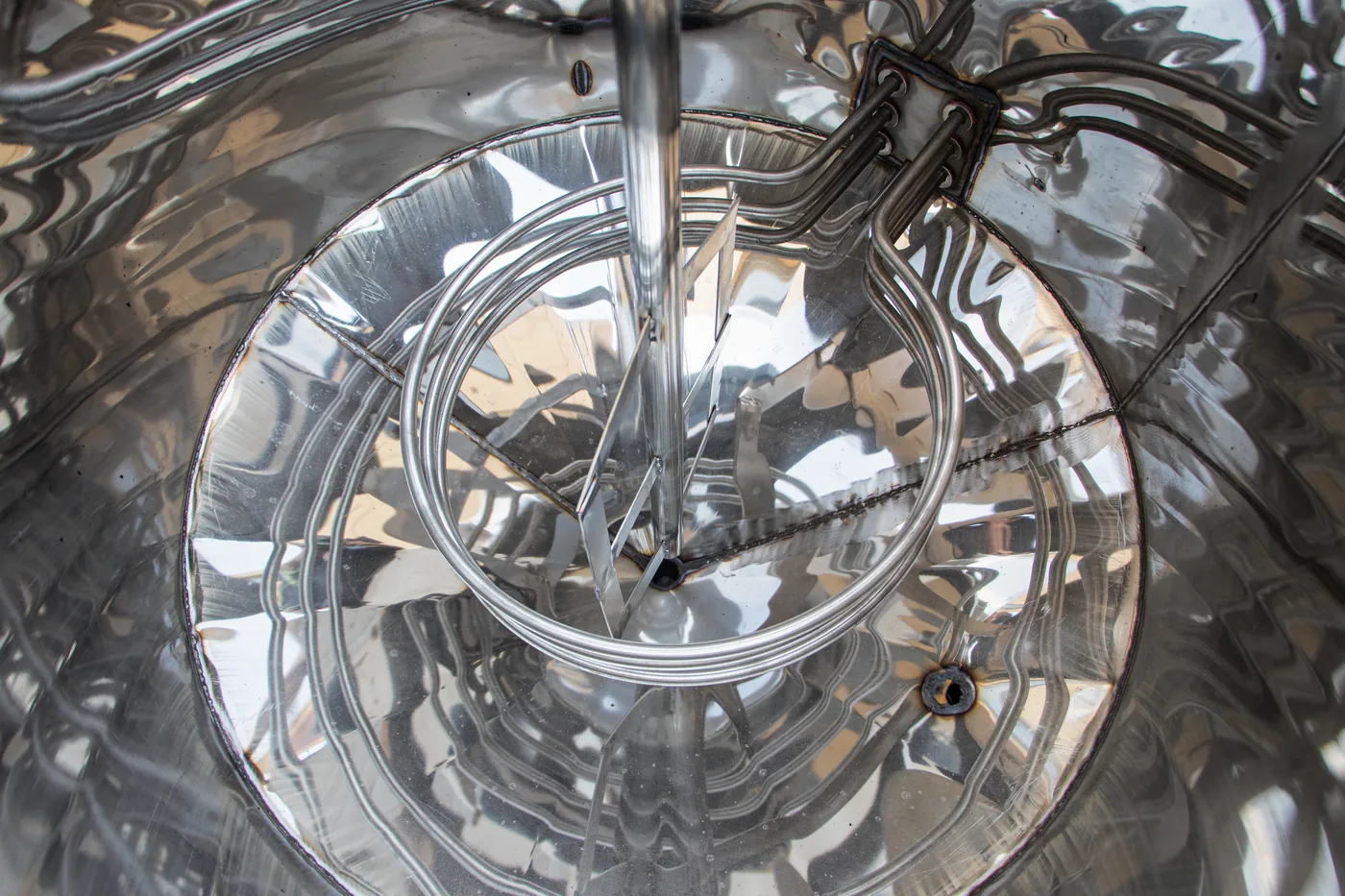

Agitation disperses water, alkali and bleaching earth evenly so each treatment reacts uniformly across the batch.
Tapered bottoms collect hydrated gums, soapstock and spent earth for discharge, separating impurities from the clarified oil.
Steam or thermal heating brings each batch to the temperature required for hydration, neutralization and bleaching.
Stainless steel on oil-contact surfaces resists corrosion from hot oil, acid and alkali and suits food-grade work.

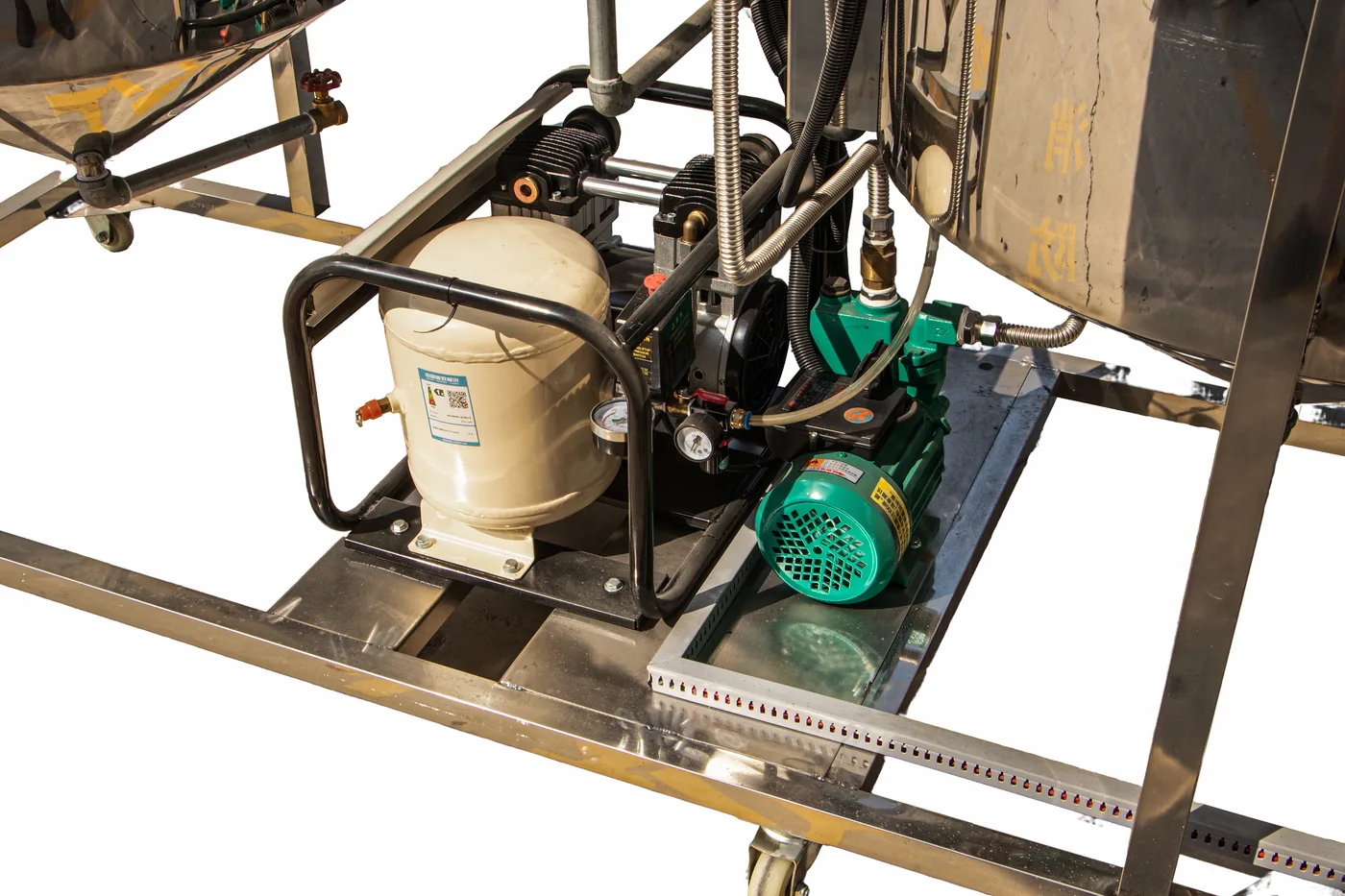

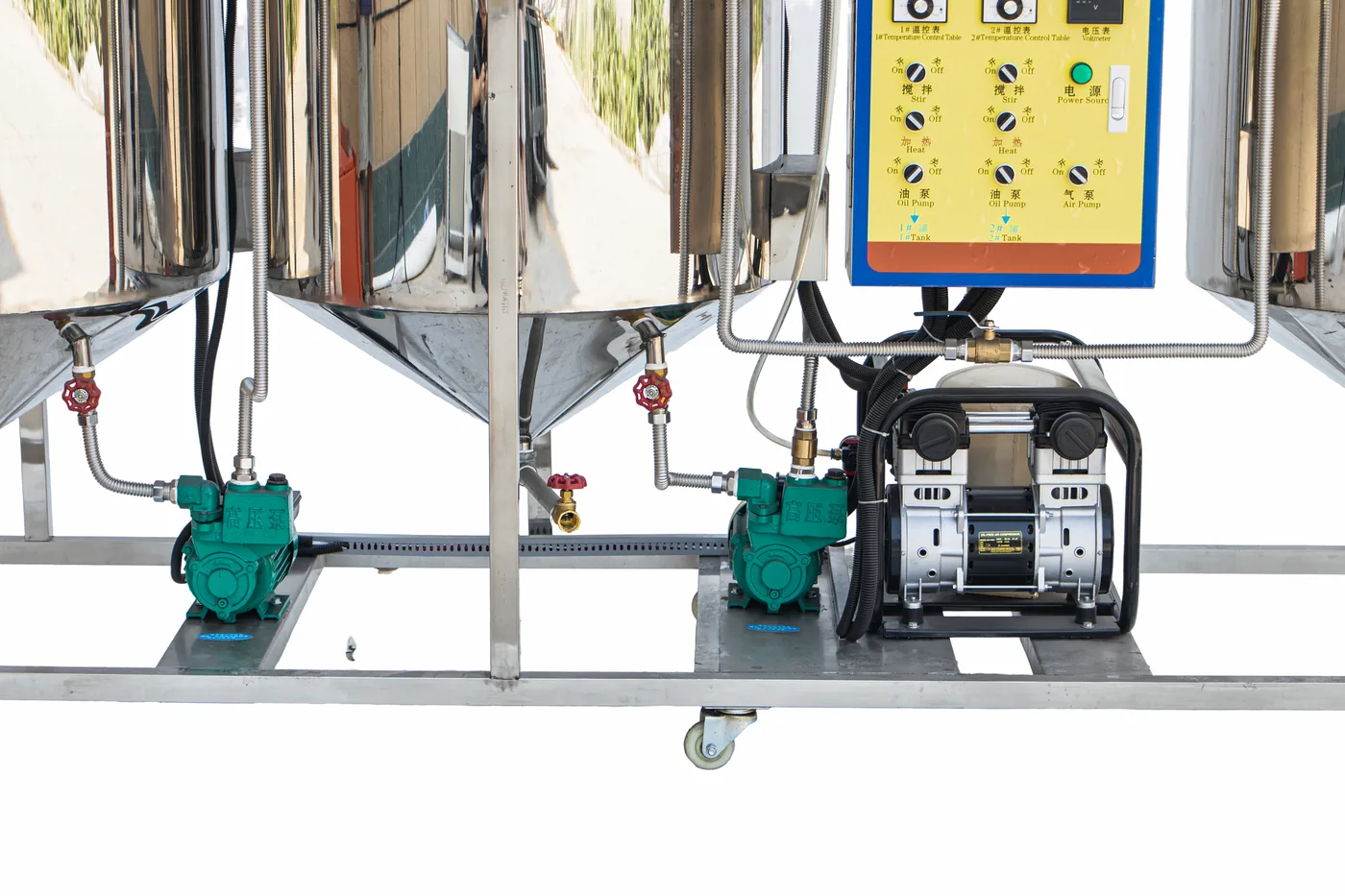

Pumps move oil between stages and assist reagent addition for orderly batch operation.
Working principle
Water or acid is hydrated into the warm oil so phospholipids swell, become insoluble and settle out through the conical tank bottom.
Alkali is dosed and stirred in to convert free fatty acids into soapstock, which separates from the oil and is discharged, reducing acidity.
The oil is washed to remove residual soap and alkali traces, then heated to drive off moisture ahead of bleaching.
Bleaching earth is mixed in to adsorb pigments and trace impurities, then filtered out to yield a clear, light-colored refined oil.

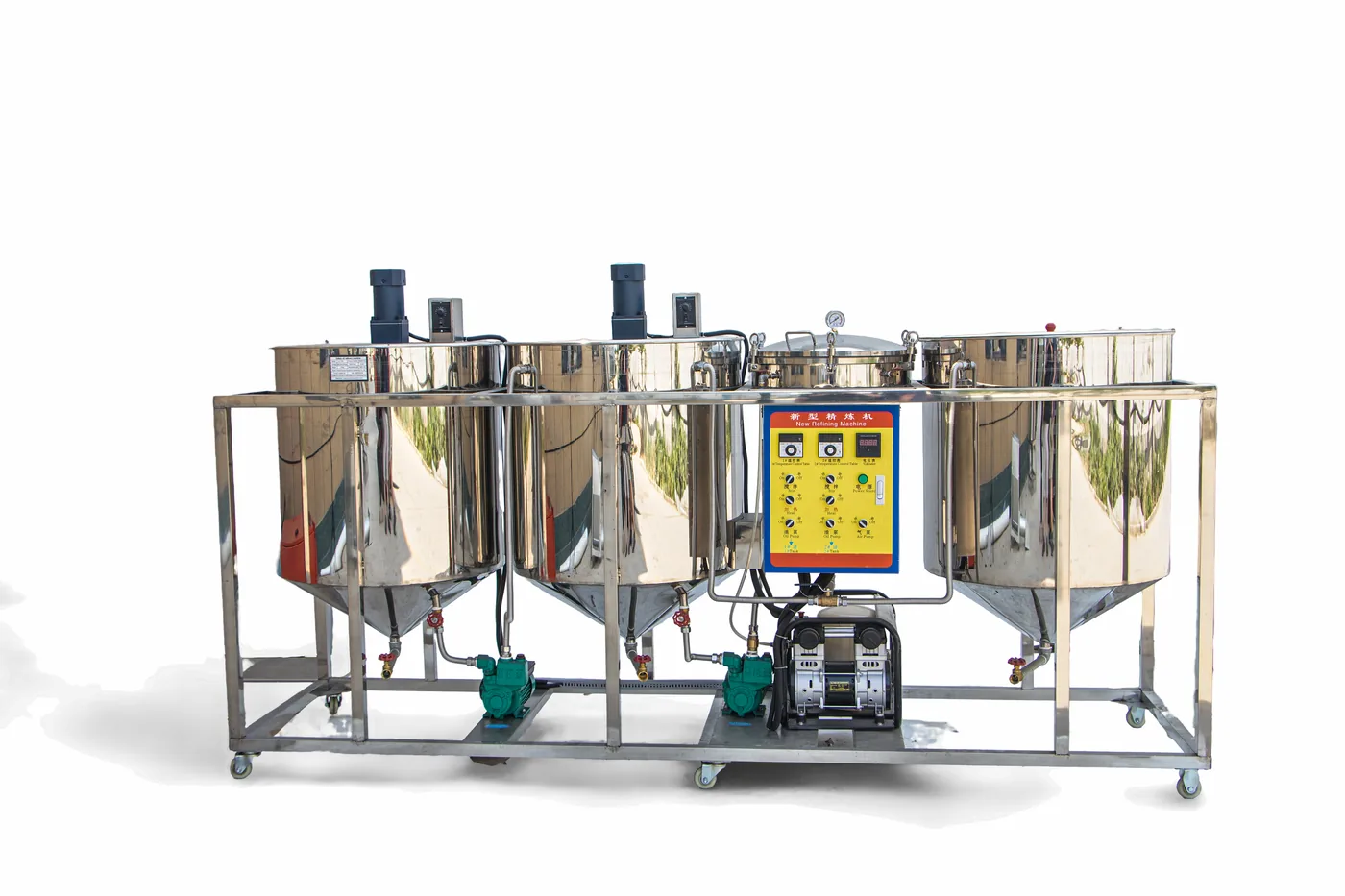

Product Photos
Demonstration Video
Watch the B-Type Oil Refining Machine running — see the machine in operation. More on our Product Videos page.
Applications & Suitable Materials
For edible-oil producers needing batch refining in an alternate tank layout across common oilseed oils.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the B-Type Oil Refining Machine process?
It is suited to Refining crude soybean oil, Refining crude rapeseed / canola oil, Refining crude peanut oil, Refining crude sunflower oil and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the B-Type Oil Refining Machine suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
What impurities does refining remove?
Refining removes phospholipids (gums), free fatty acids, pigments and trace solids that cause cloudiness, off-flavors and short shelf life, leaving clearer, more stable oil.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
