120-Type Screw Oil Press
A robust single-screw oil press for continuous extraction of peanut, rapeseed, soybean and sunflower oil — stainless construction with electric control and an adjustable press head for small and mid-size mills.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Machine type | Single-screw oil press (expeller), round-cage 3-stage |
| Capacity (indicative) | ~250 kg/h (base configuration; varies with seed & settings) |
| Motor power | 15 kW (4-pole) |
| Cake residual oil | ≤6.5% |
| Machine weight | ~1000 kg |
| Overall dimensions | ~2100 × 700 × 1750 mm |
| Construction | Stainless steel, food-contact surfaces |

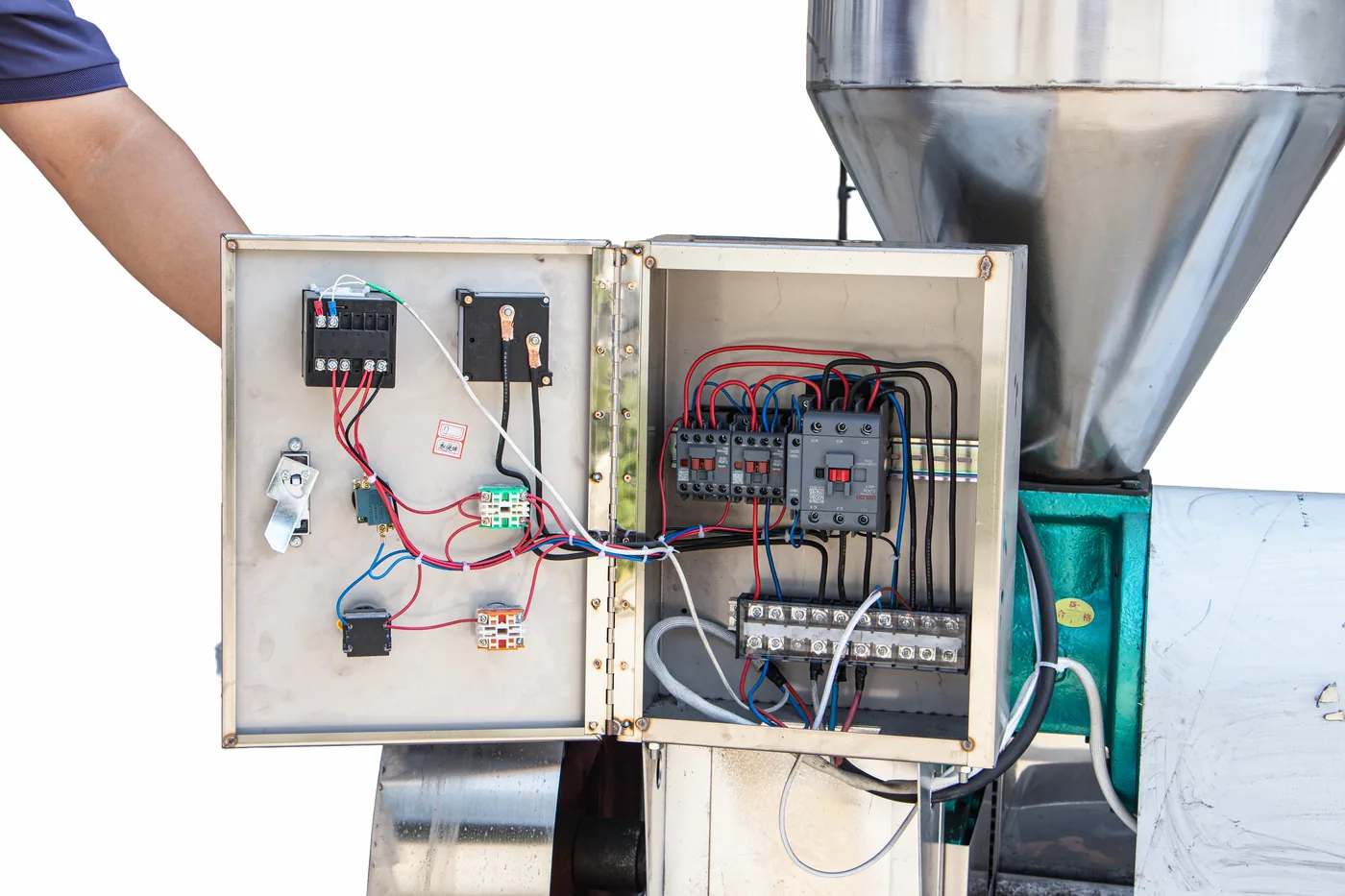

| Control panel | Electric — ammeter + digital temperature display |

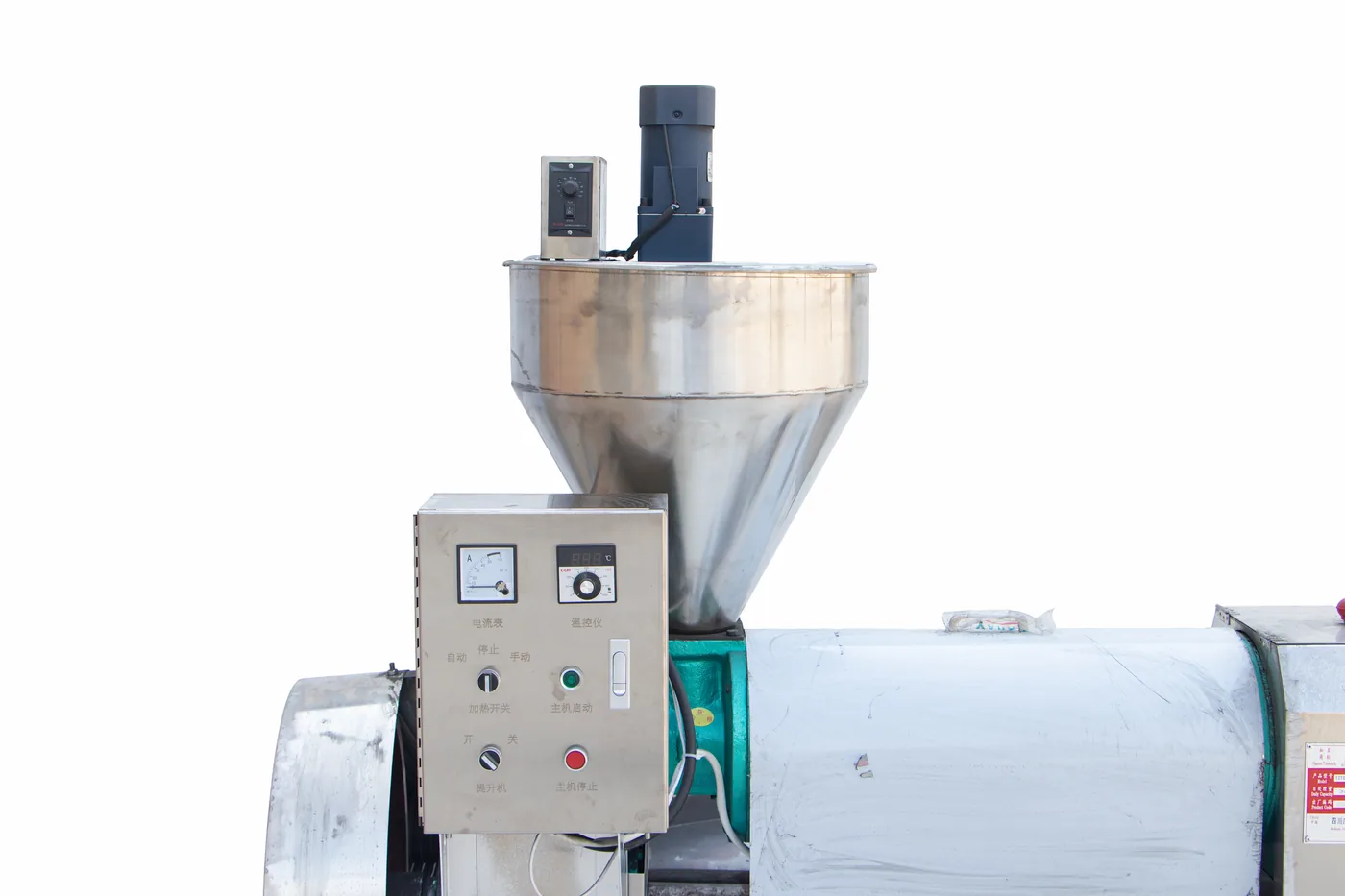

| Feeding | Top hopper, continuous; adjustable press head |
| Conforms to standard | JB/T 9793-2013 (screw oil press) |
Screw press model range (indicative)
| Model | Capacity | Motor | Cake residual | Weight |
| 100-Type | ~150 kg/h | 11 kW | ≤6.5% | ~750 kg |
| 120-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 125-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 140-Type | ~400 kg/h | 22 kW | ≤6.5% | ~1200 kg |
Figures are indicative from the manufacturer data sheet; the right model depends on your target output.
Function & Working Principle
Continuous screw action gives steady oil extraction.
Food-contact surfaces in stainless steel for hygiene and durability.
Ammeter and digital temperature display with start/stop control.
Hand-wheel adjustment sets cake thickness and pressure.
Continuous feeding keeps the press running steadily.
Suited to small and mid-size oil mills needing reliable output.
Working principle

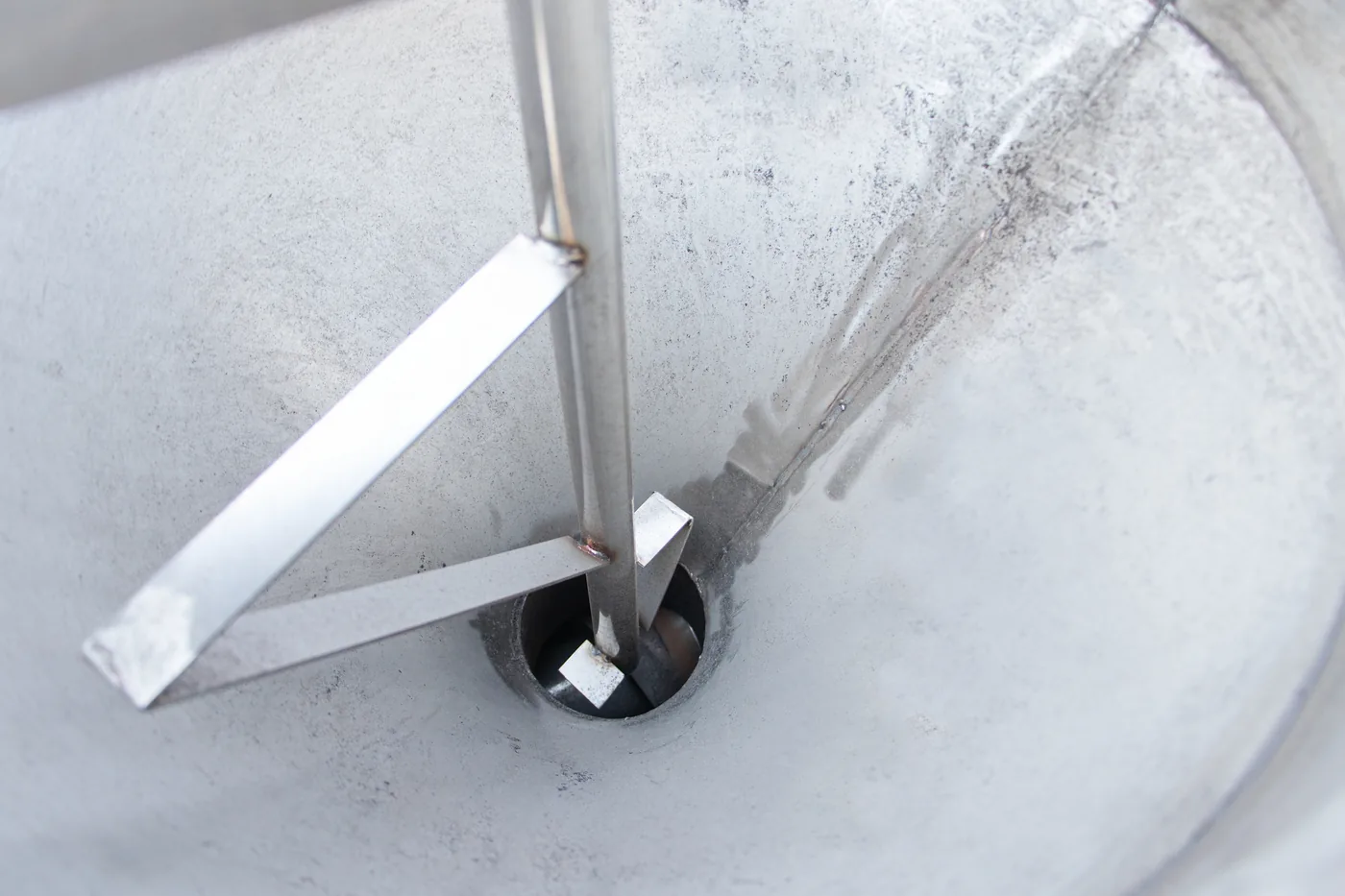

Seeds enter the top hopper into the screw chamber.
The rotating screw builds pressure on the seeds, squeezing out oil.
Released oil drains from the chamber and is collected for filtering.
The de-oiled cake exits the adjustable press head.

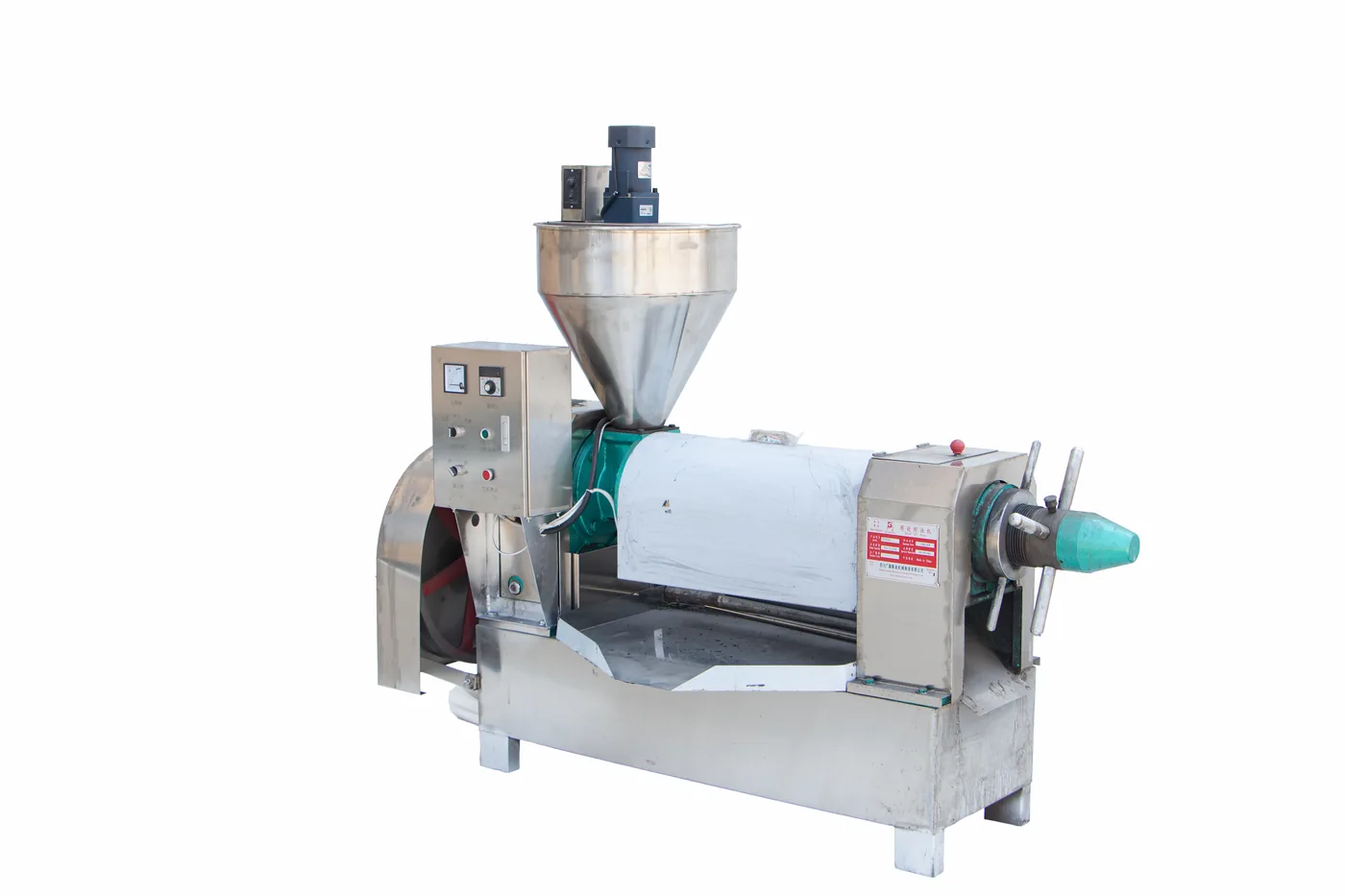

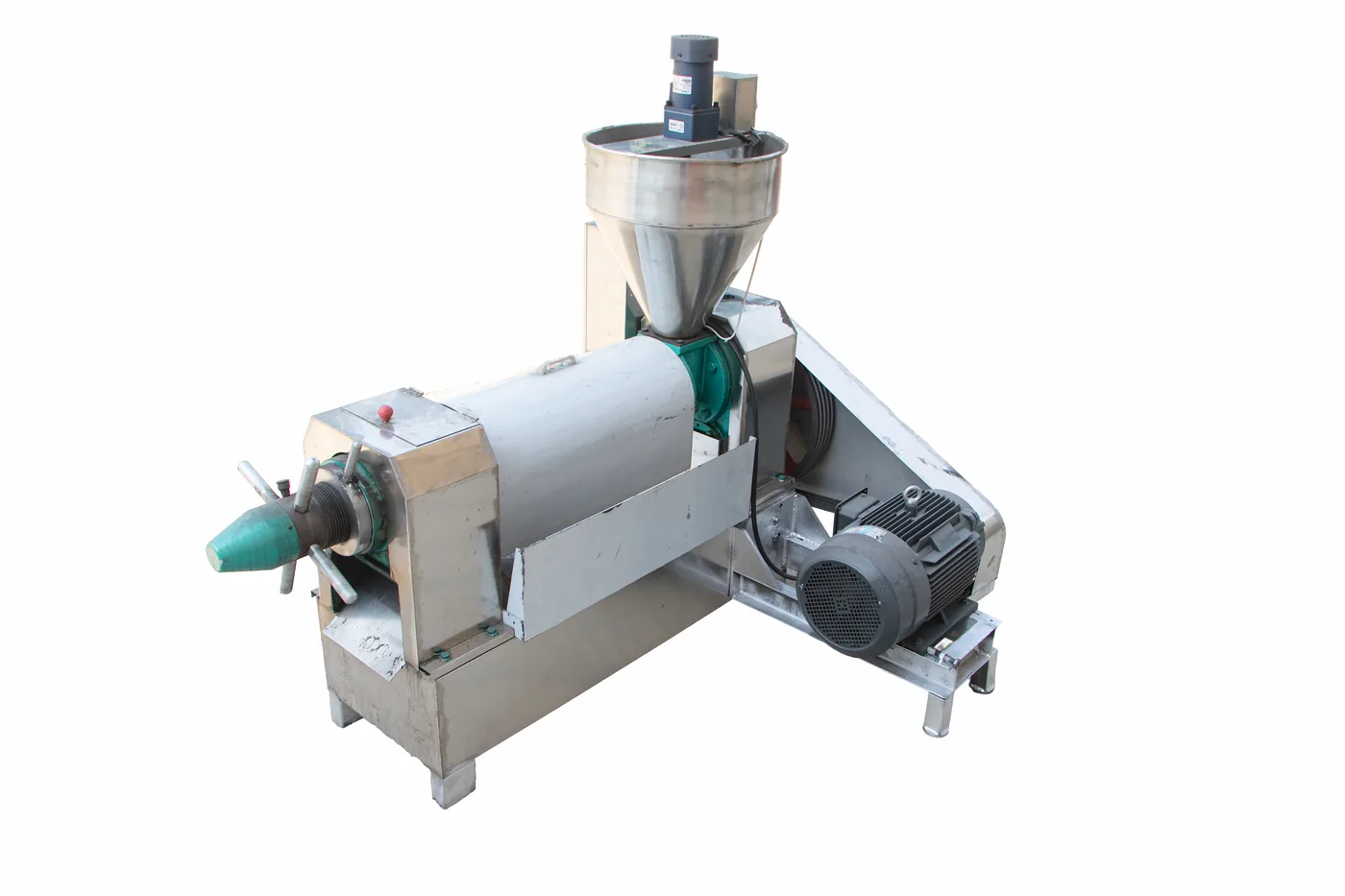

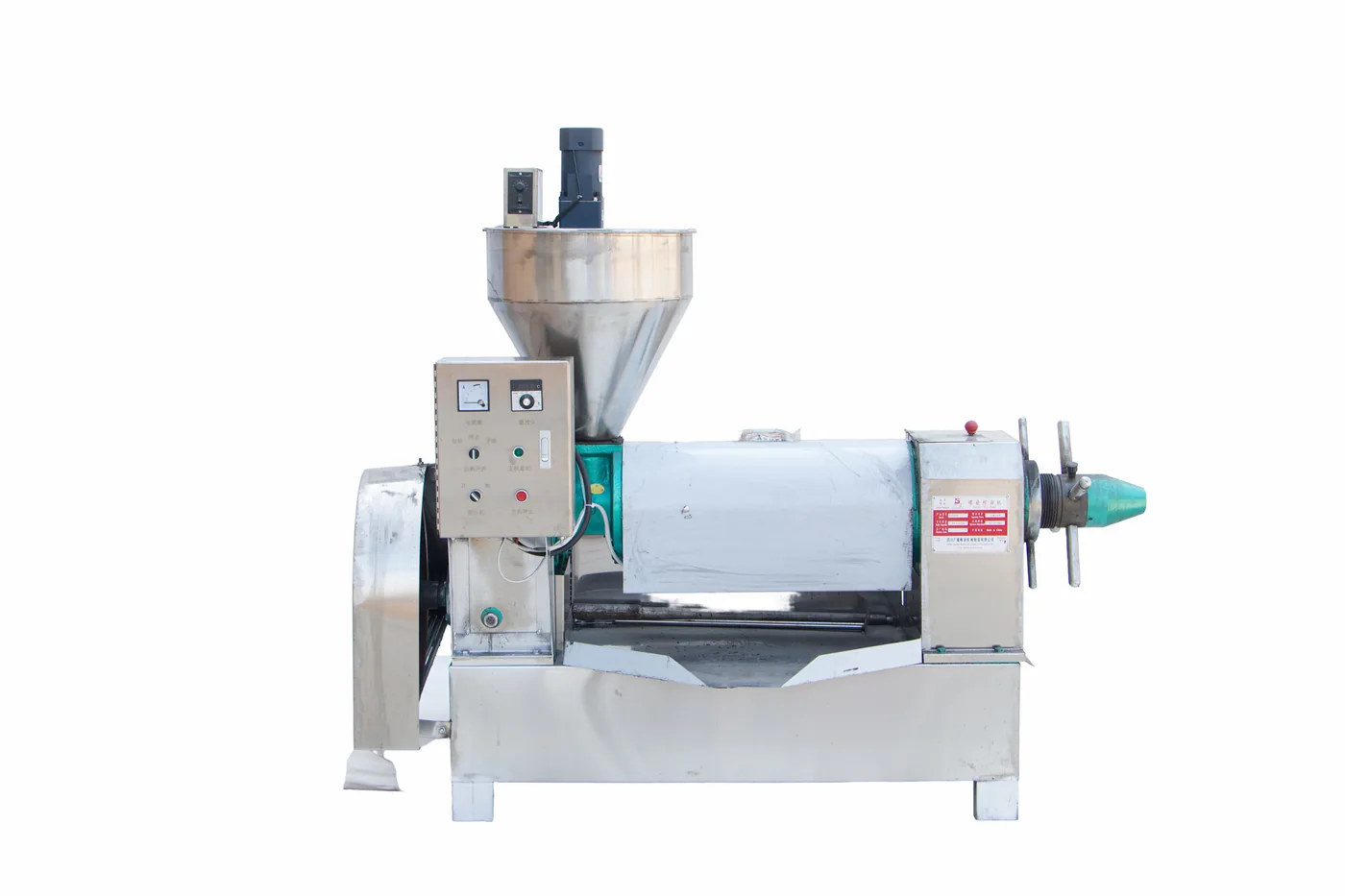

Product Photos
How It Works — Animated Schematic
Hand-drawn animated schematic of the expeller pressing principle — feeding, screw pressing, oil release and cake discharge.
Demonstration Video
Watch the 120-Type Screw Oil Press running — see the machine in operation. More on our Product Videos page.
Applications & Suitable Materials
For continuous pressing of common oilseeds in small and mid-size mills.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Conforms to JB/T 9793-2013 (screw oil press); nameplate carries model, capacity, power, weight and dimensions.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the 120-Type Screw Oil Press process?
It is suited to Peanut (groundnut), Rapeseed, Soybean, Sunflower seed and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the 120-Type Screw Oil Press suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
Can this press handle different oilseeds?
Yes. The 120-Type Screw Oil Press presses a range of oilseeds including Peanut (groundnut), Rapeseed, Soybean, Sunflower seed. Cake thickness and pressing pressure are adjustable at the press head to suit each material.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
