125-Type 4-Stage Bar-Cage Press
A higher-capacity bar-cage screw press with a four-stage pressing chamber for improved oil yield — the open bar-cage drains oil freely and is easy to clean for continuous mill operation.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Machine Type | Four-stage bar-cage screw oil press |
| Pressing | Multi-stage bar-cage pressing for higher oil yield |
| Cage Design | Open bar-cage — free oil drainage, easy cleaning |
| Construction | Steel frame with stainless food-contact parts |

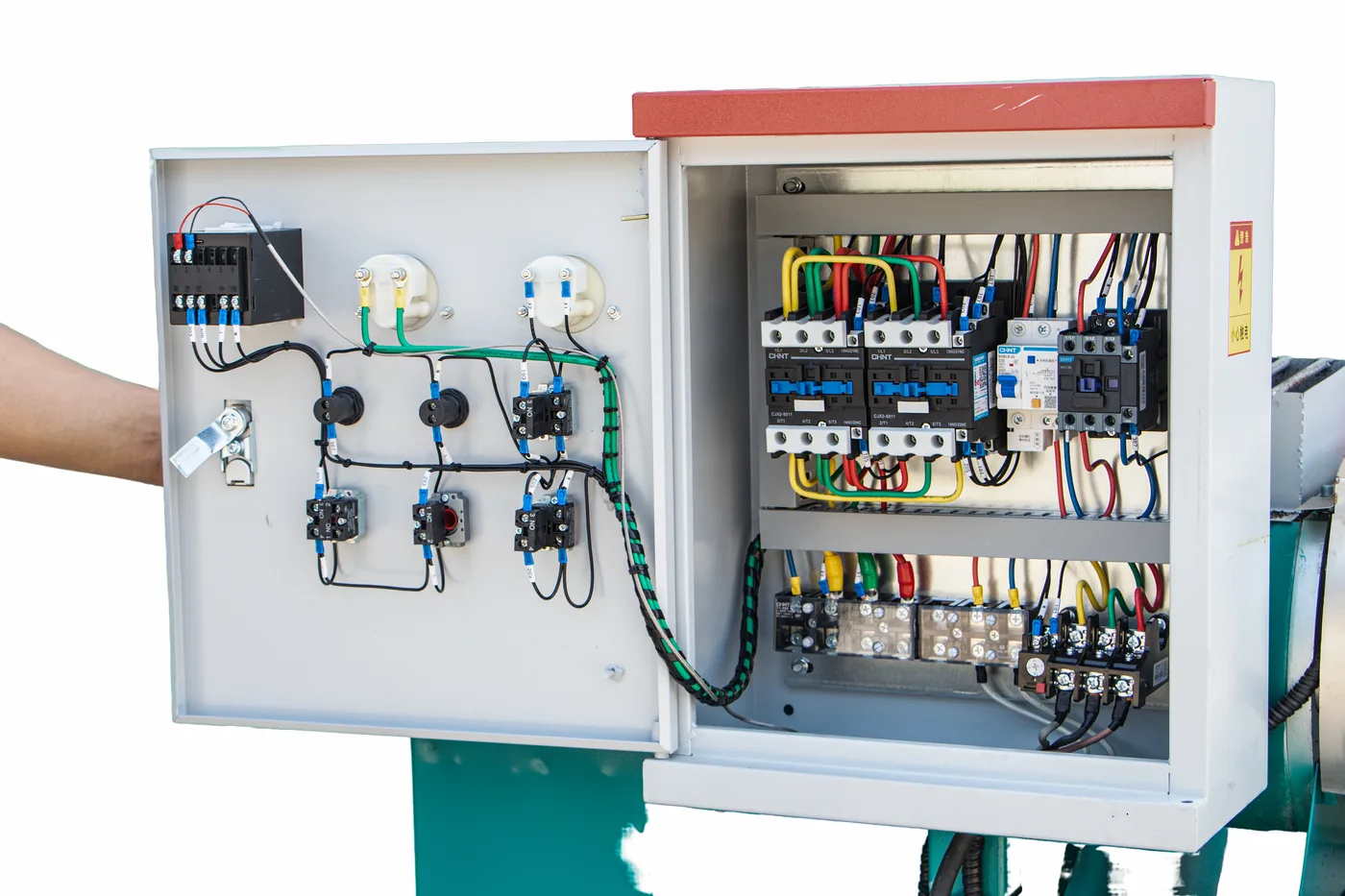

| Control Panel | Electric control — ammeter + digital temperature display |
| Capacity / Power / Dimensions | Available on request |
Screw press model range (indicative)
| Model | Capacity | Motor | Cake residual | Weight |
| 100-Type | ~150 kg/h | 11 kW | ≤6.5% | ~750 kg |
| 120-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 125-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 140-Type | ~400 kg/h | 22 kW | ≤6.5% | ~1200 kg |
Figures are indicative from the manufacturer data sheet; the right model depends on your target output.
Function & Working Principle
Progressive pressure across four stages improves oil release.
Spaced bars drain oil freely and ease cleaning.
Suited to mills needing greater throughput than a basic press.
Sturdy construction for continuous daily operation.

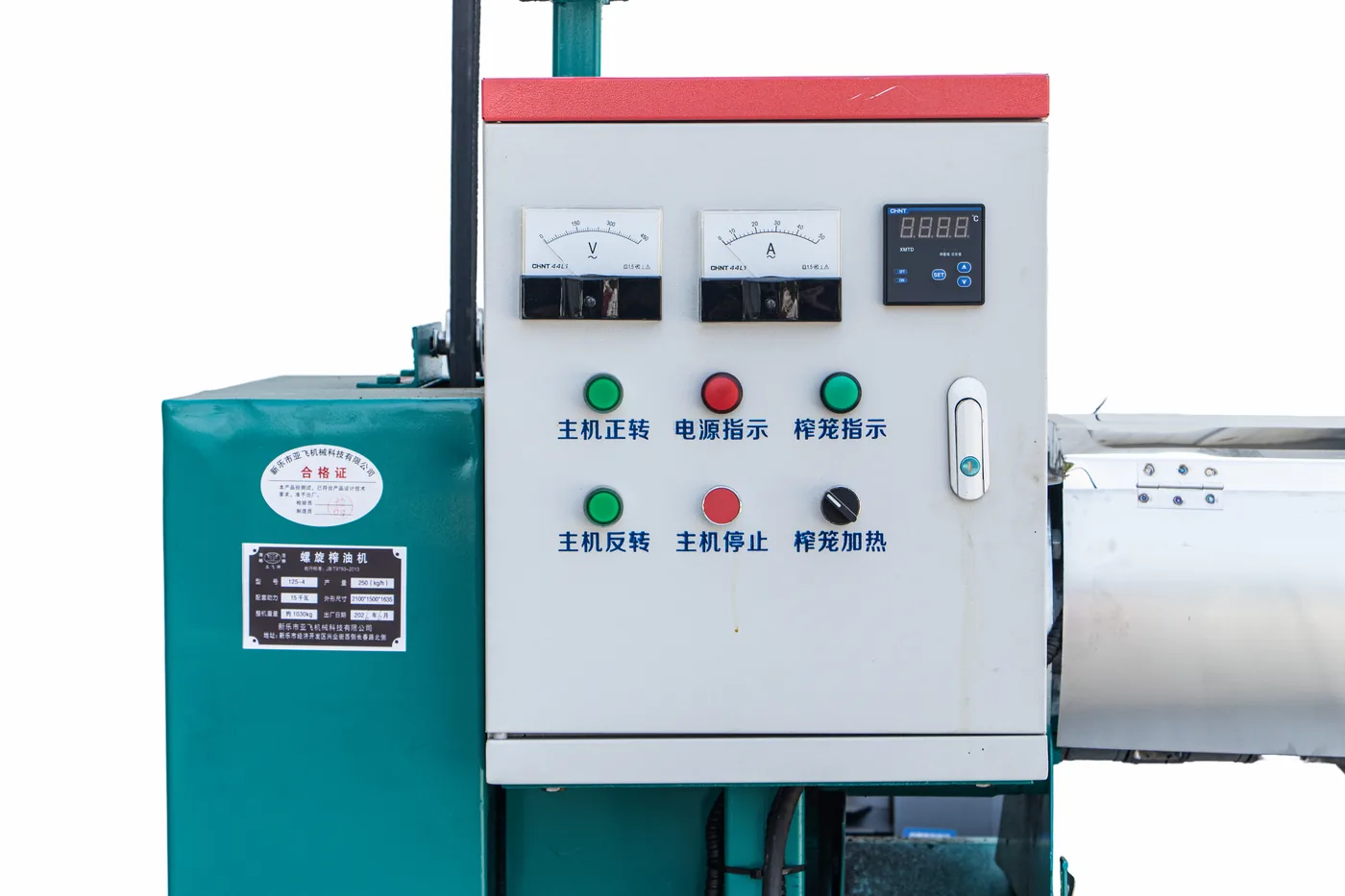

Ammeter and digital temperature display with start/stop.

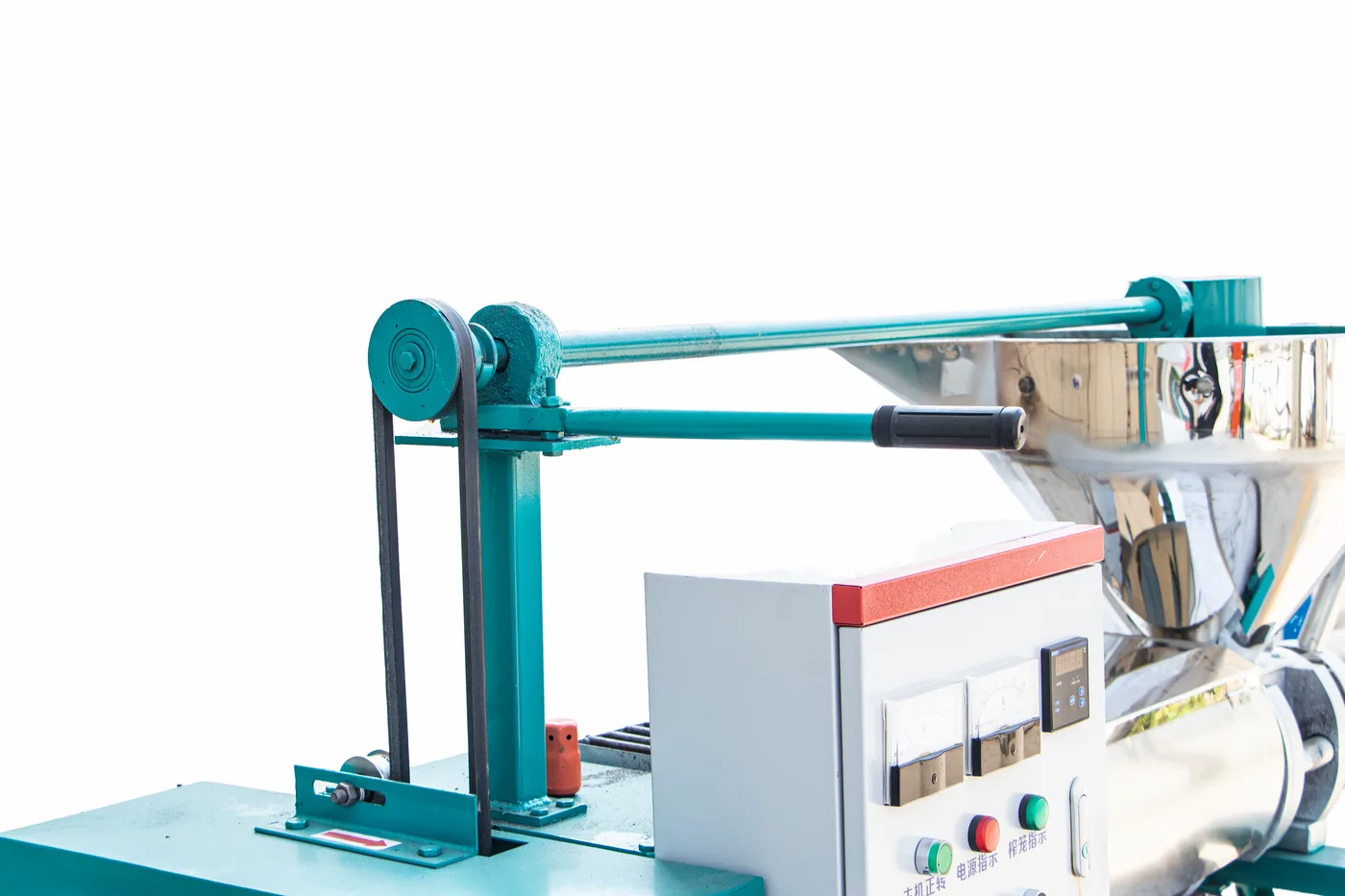

Hand-wheel adjustment controls cake thickness and pressure.
Working principle
Cleaned seeds enter the top hopper into the multi-stage chamber.
The four-stage screw raises pressure step by step for fuller oil release.

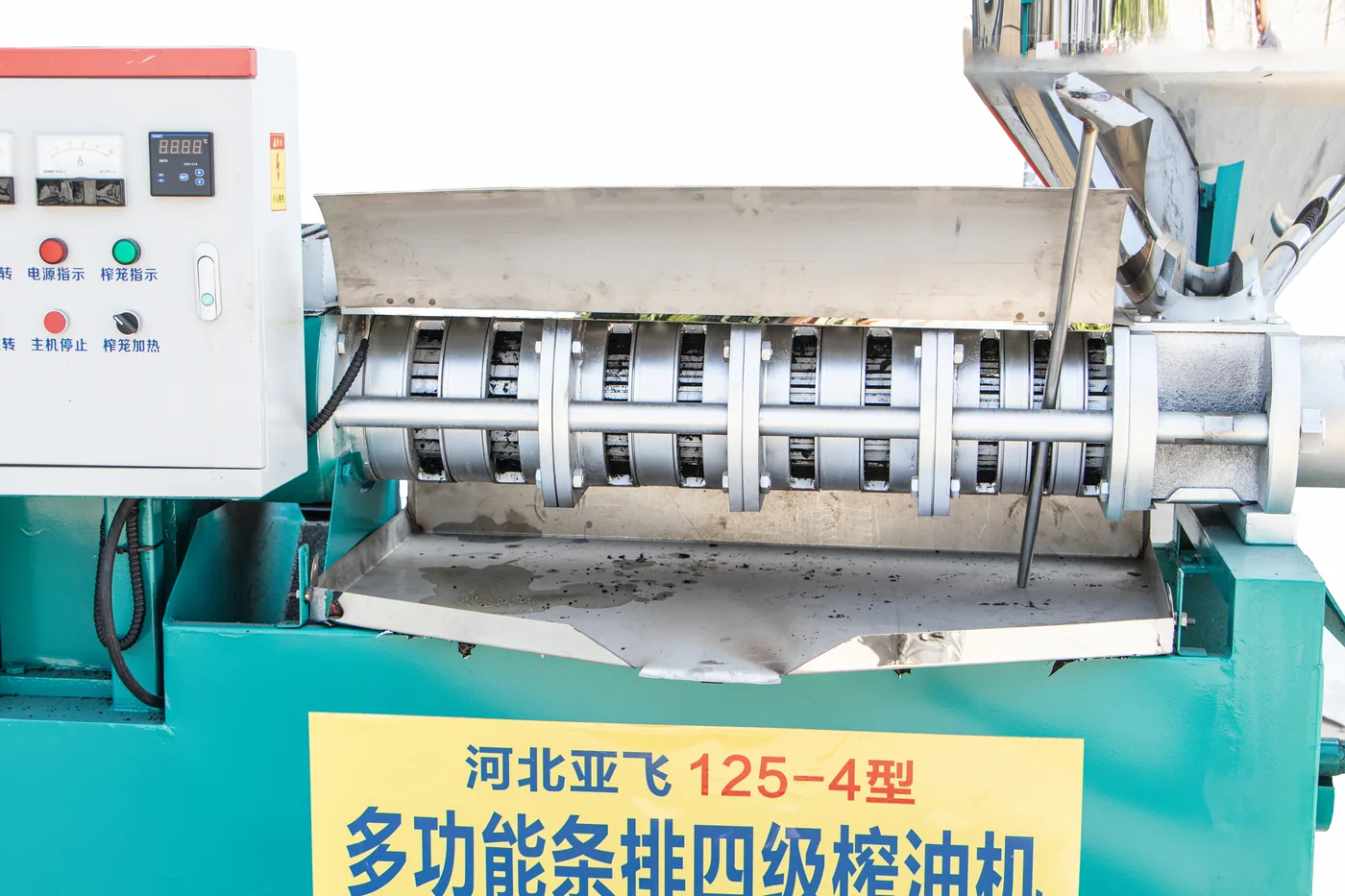

Oil drains through the open bar-cage and is collected below.
De-oiled cake exits the adjustable press head.

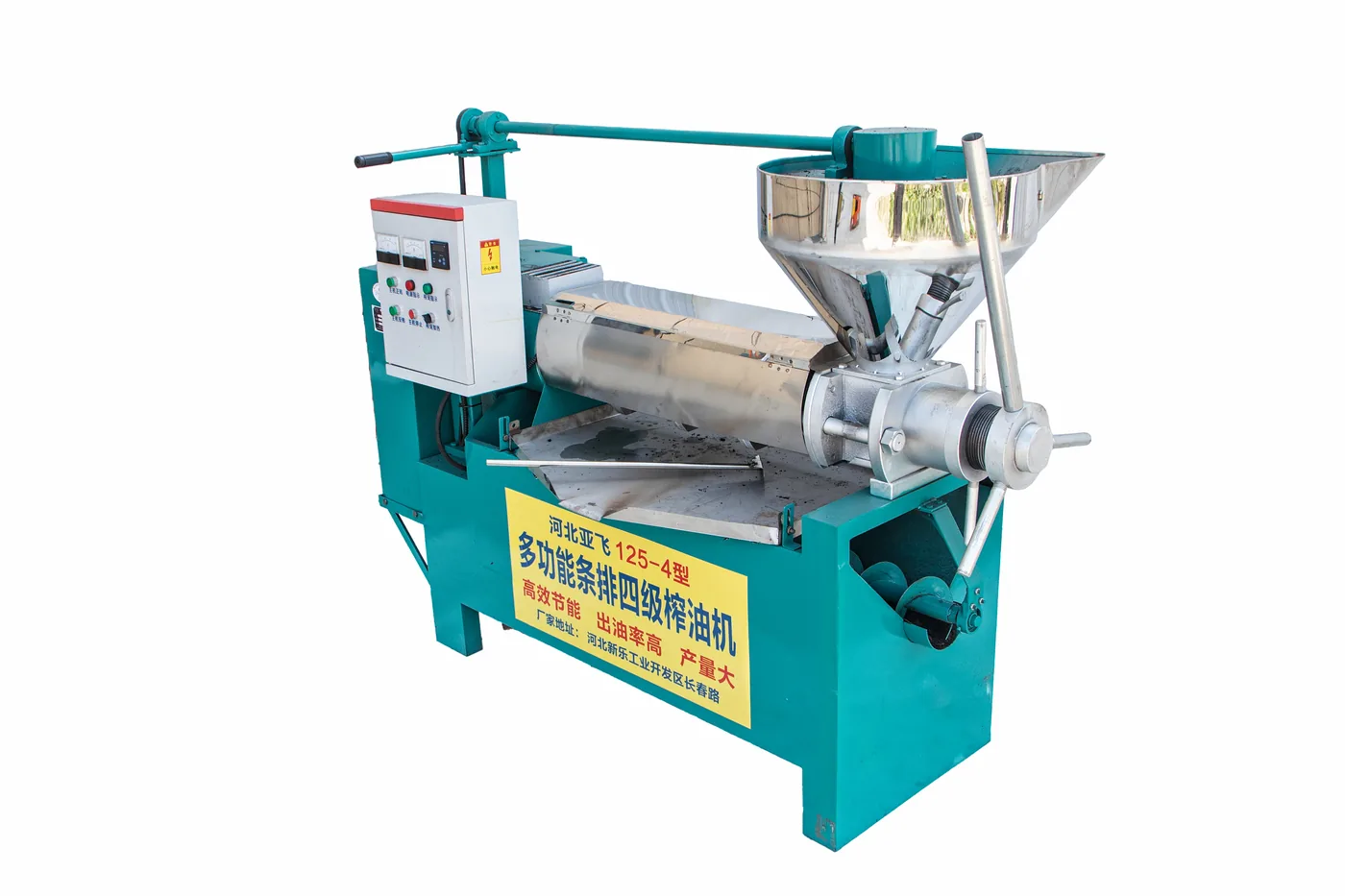

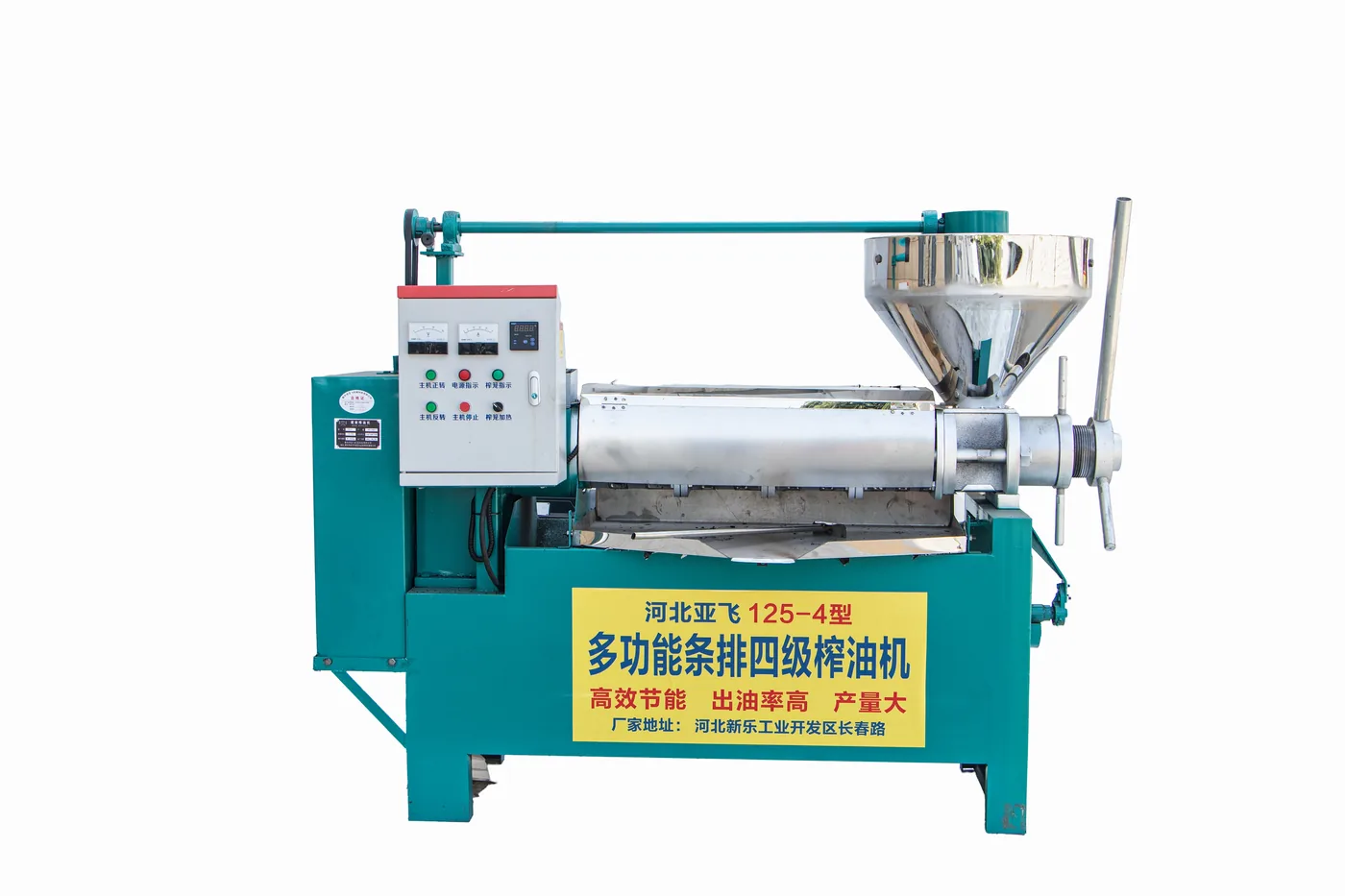

Product Photos
How It Works — Animated Schematic
Hand-drawn animated schematic of the expeller pressing principle — feeding, screw pressing, oil release and cake discharge.
Demonstration Video
Watch the 125-Type 4-Stage Bar-Cage Press running — see the machine in operation. More on our Product Videos page.
Applications & Suitable Materials
For higher-capacity pressing of oilseeds in continuously running mills.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the 125-Type 4-Stage Bar-Cage Press process?
It is suited to Peanut (groundnut), Rapeseed, Soybean, Sunflower seed and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the 125-Type 4-Stage Bar-Cage Press suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
Can this press handle different oilseeds?
Yes. The 125-Type 4-Stage Bar-Cage Press presses a range of oilseeds including Peanut (groundnut), Rapeseed, Soybean, Sunflower seed. Cake thickness and pressing pressure are adjustable at the press head to suit each material.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
