Integrated Bar-Cage Oil Press
An all-in-one bar-cage press that integrates pressing and an integrated drive motor in a single compact unit — built for oil mills and startups that need a simple, reliable extraction machine with minimal setup.
Designed for its job in the edible-oil line, not a generic unit.
Food-contact surfaces in stainless steel where it matters.
Capacity and configuration matched to your material and throughput.
Pairs with our prep/press/filter/refine line; install & spares support.
Technical Specifications
| Machine Type | Integrated bar-cage screw oil press |
| Pressing | Continuous bar-cage pressing with an integrated drive motor |
| Cage Design | Open bar-cage — free oil drainage, easy maintenance |
| Construction | Stainless steel, food-contact surfaces |
| Control Panel | Electric — ammeter + digital temperature display |
| Capacity / Power / Dimensions | Available on request |
Screw press model range (indicative)
| Model | Capacity | Motor | Cake residual | Weight |
| 100-Type | ~150 kg/h | 11 kW | ≤6.5% | ~750 kg |
| 120-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 125-Type | ~250 kg/h | 15 kW | ≤6.5% | ~1000 kg |
| 140-Type | ~400 kg/h | 22 kW | ≤6.5% | ~1200 kg |
Figures are indicative from the manufacturer data sheet; the right model depends on your target output.
Function & Working Principle
Pressing and the drive motor combined in one compact unit.
Spaced bars drain oil freely and ease cleaning.
Food-contact parts in stainless steel for hygiene.

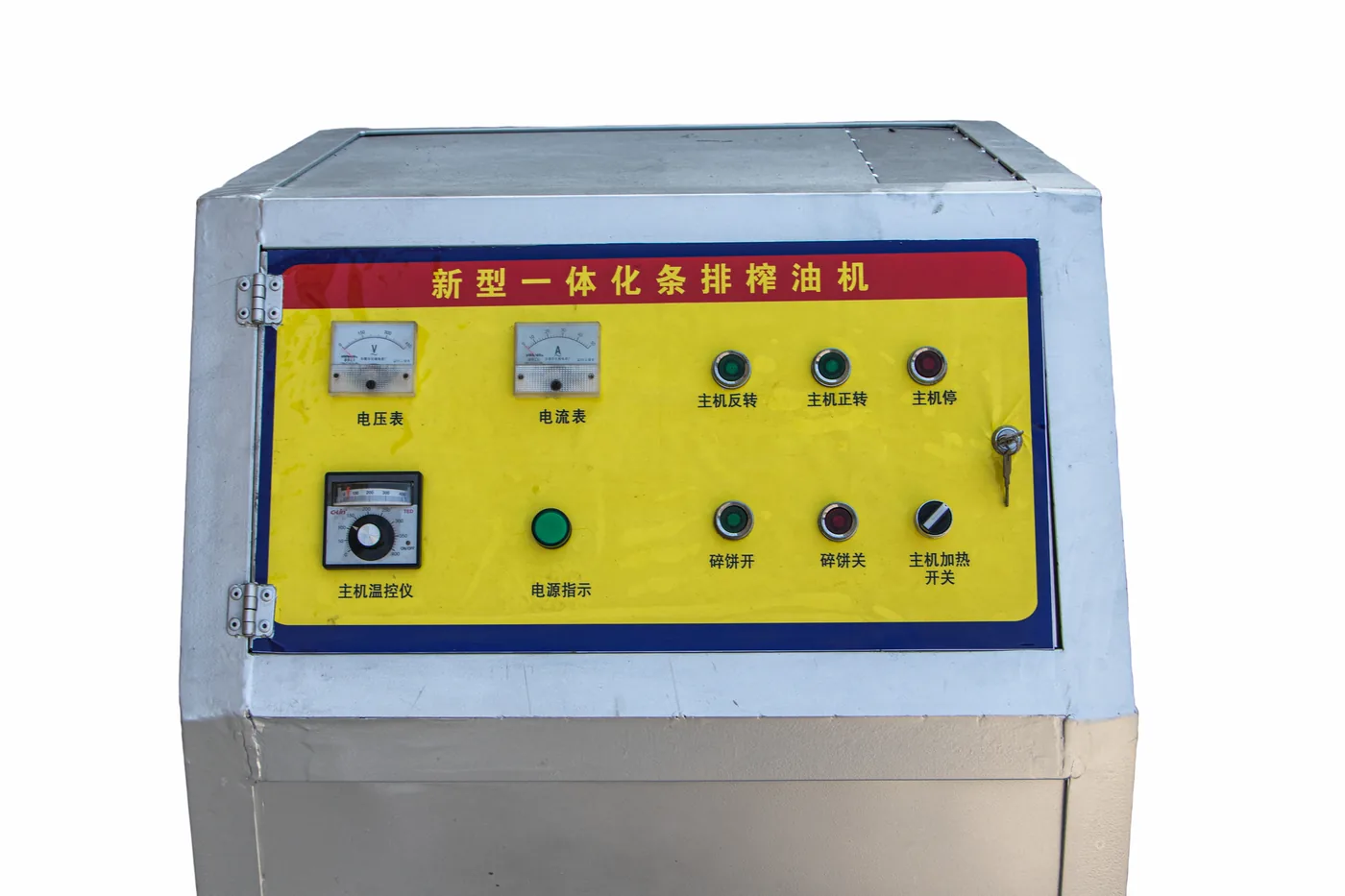

Ammeter and digital temperature display with start/stop.
Hand-wheel adjustment sets cake thickness and pressure.
Minimal setup suits small mills and new oil businesses.
Working principle

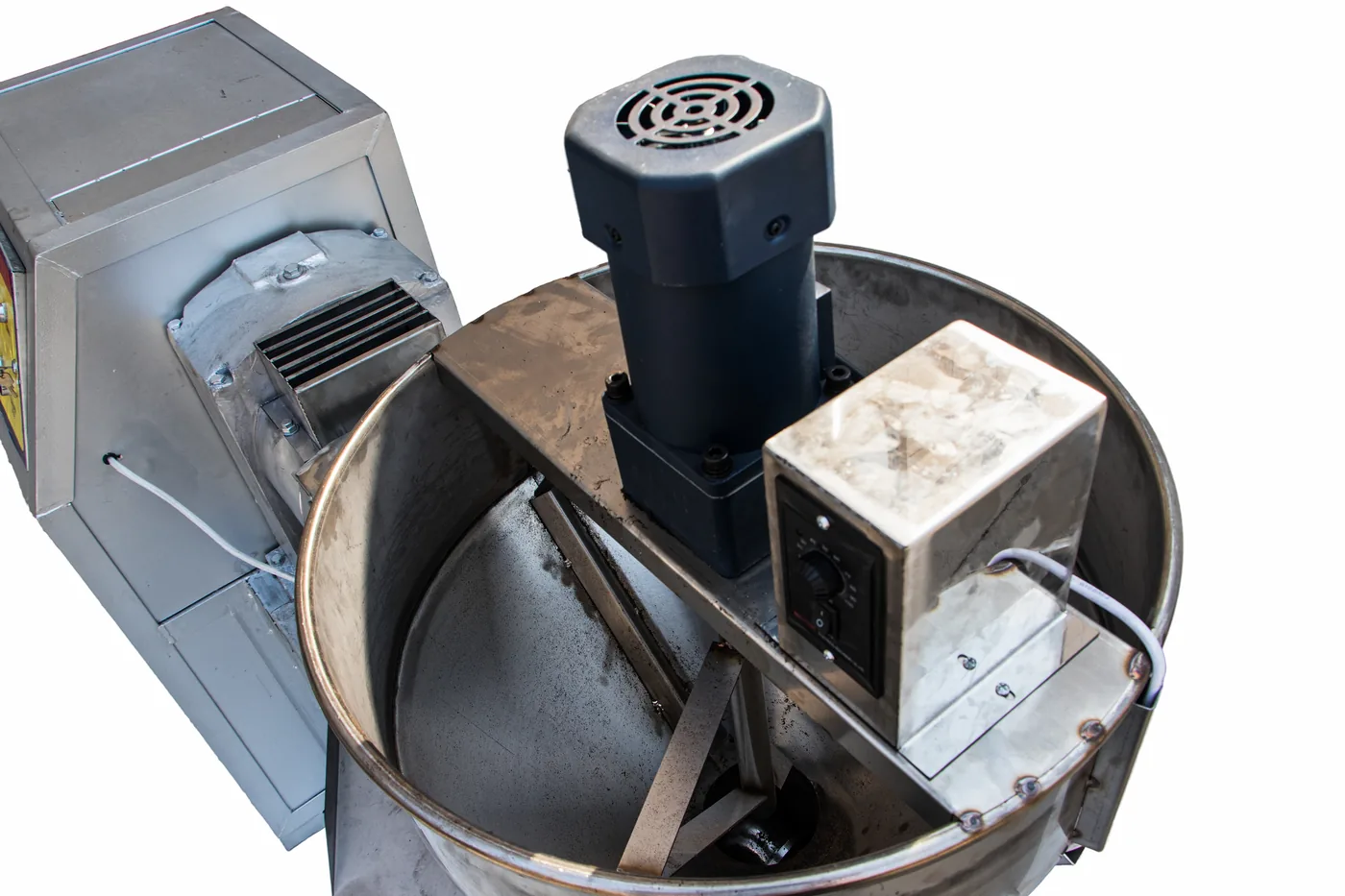

Cleaned seeds enter the hopper into the pressing chamber.

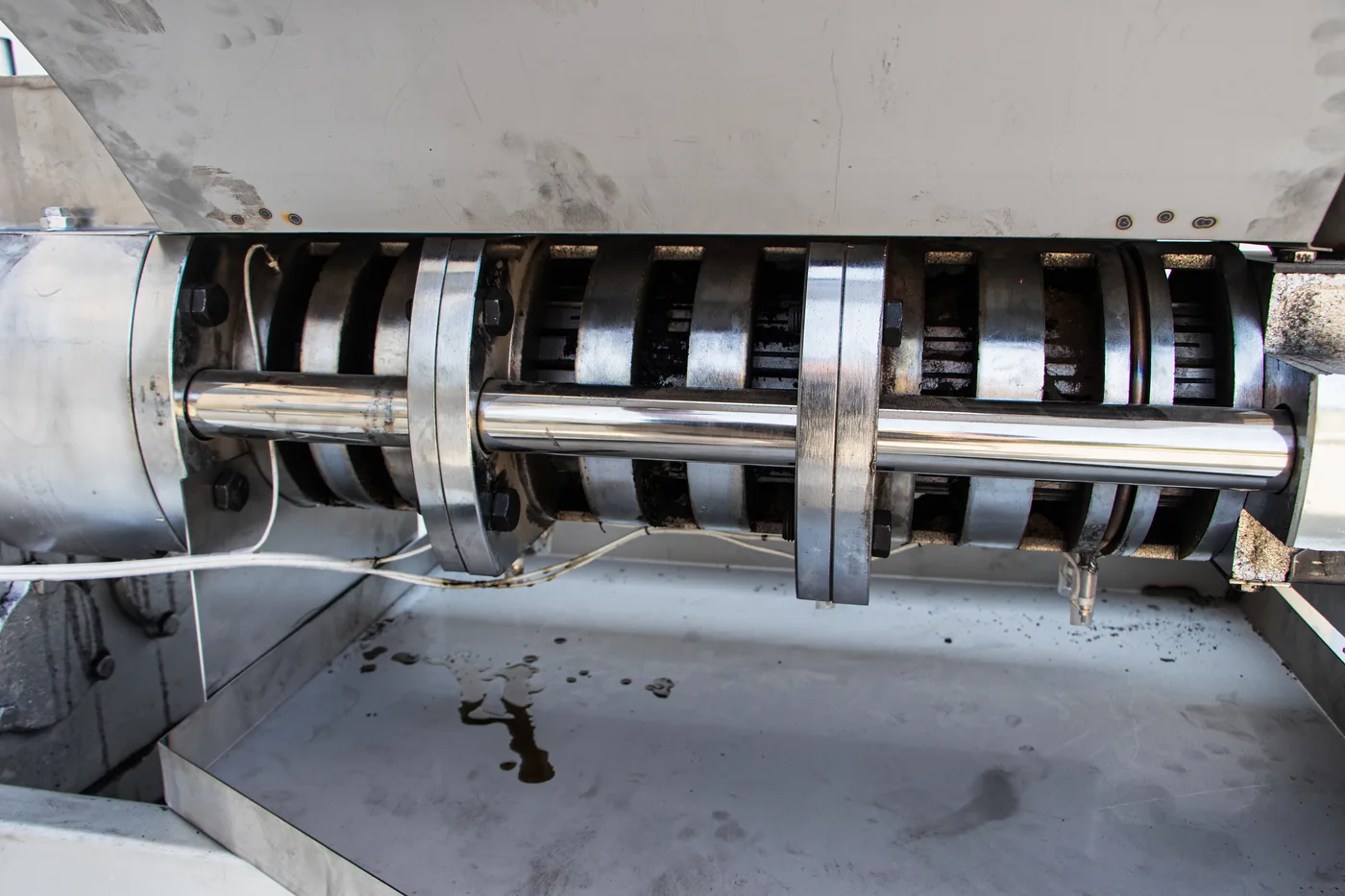

The screw compresses seeds against the open bar-cage, releasing oil.
Oil drains and is collected within the same unit.
De-oiled cake exits the adjustable press head.

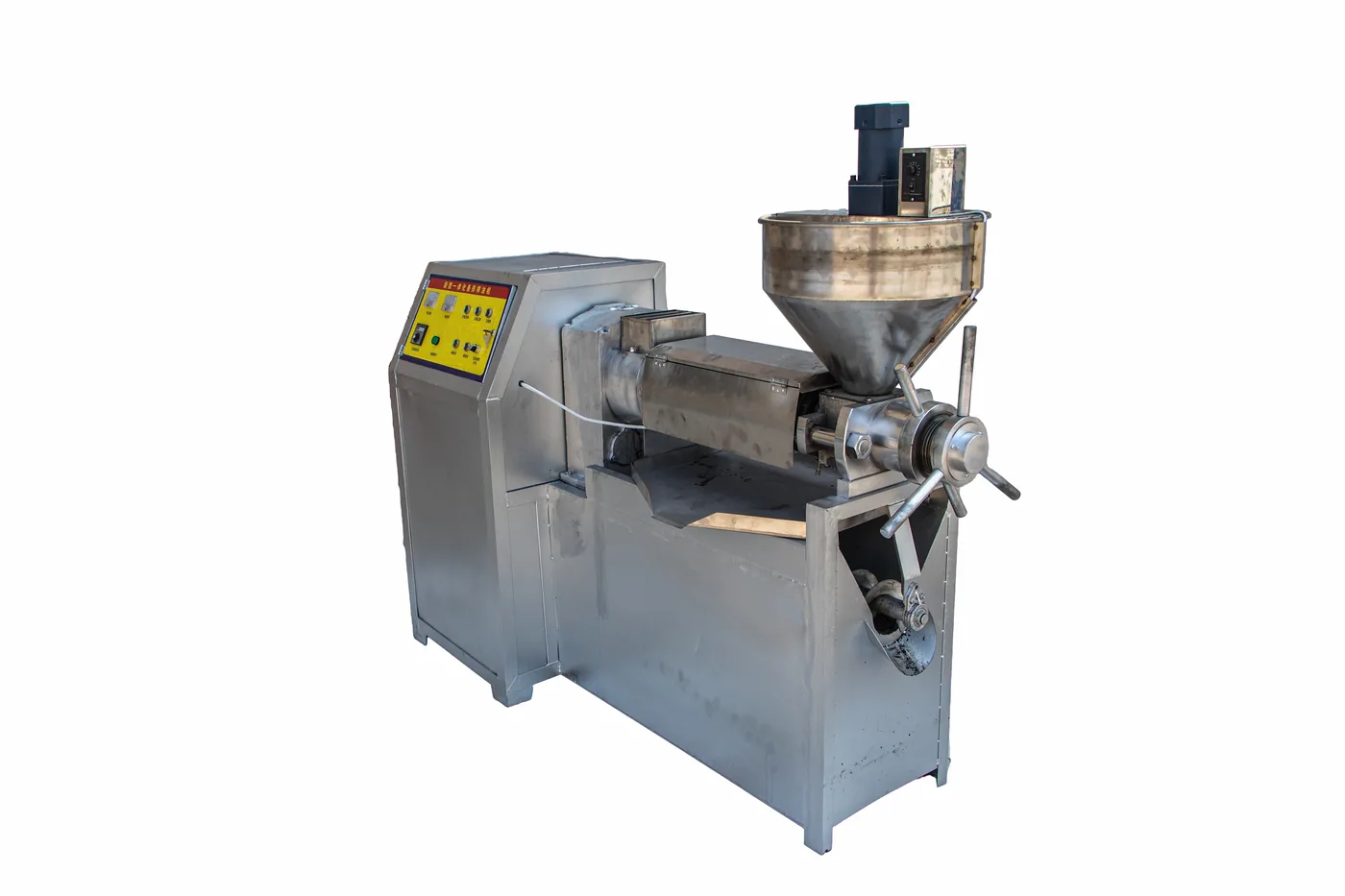

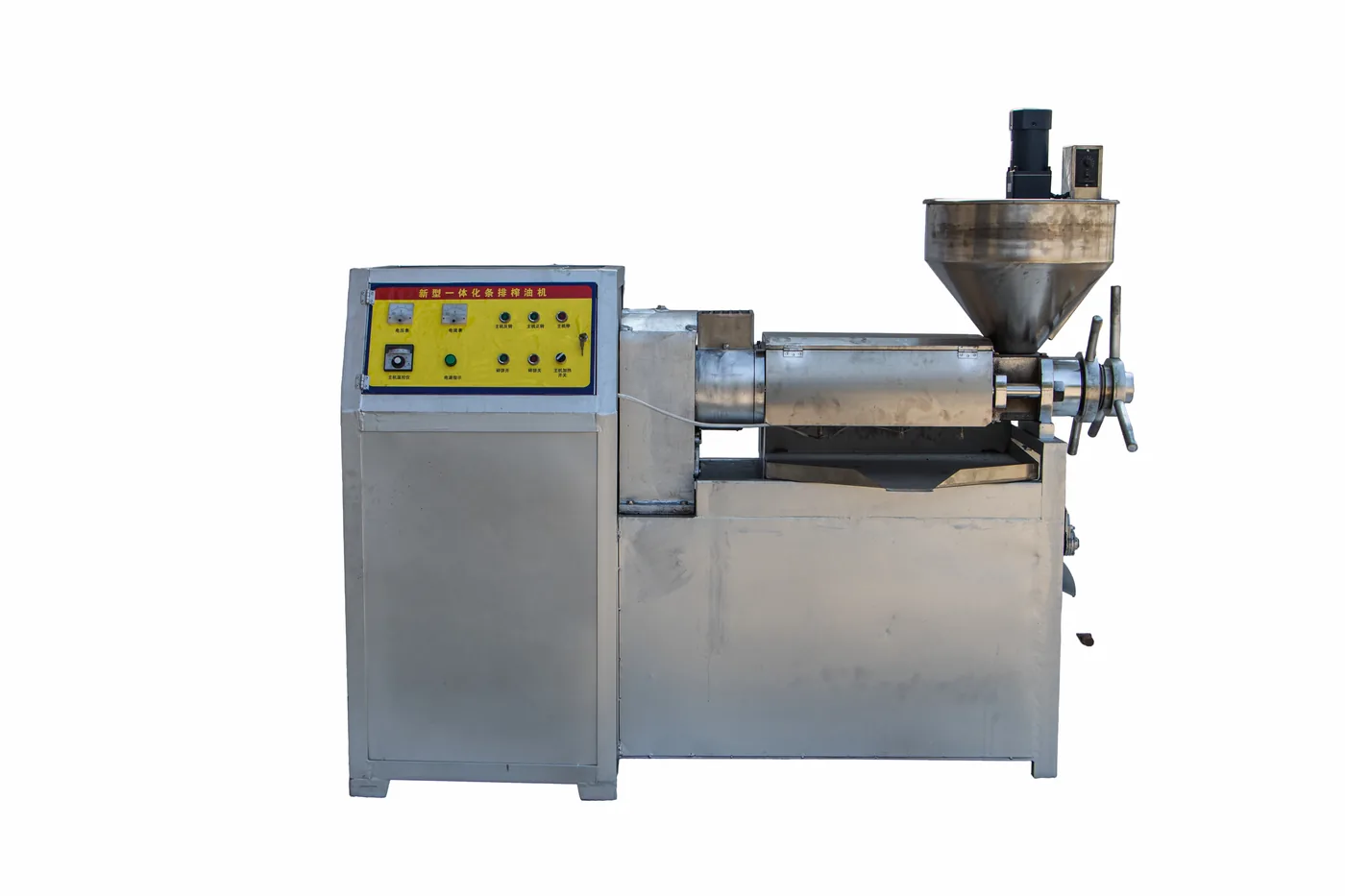

Product Photos
How It Works — Animated Schematic
Hand-drawn animated schematic of the expeller pressing principle — feeding, screw pressing, oil release and cake discharge.
Applications & Suitable Materials
For startups and small mills needing a simple all-in-one press.
Quality Assurance
Food-contact surfaces in stainless steel; components selected for the duty.
Machines are test-run before dispatch to confirm they operate correctly.
Checked and packed for export so it arrives in working order.
Documents & Downloads
Full product range & specifications — download
Model, capacity, power, weight & dimensions confirmed per configuration — request the data sheet for your model.
Export Packaging
After-Sales Service
Guidance to get the machine installed and running.
Clear instructions for safe, correct operation.
Spare-parts supply and engineer support when you need it.
Upstream & Downstream Line Equipment
This machine is one step in the oil line. Pair it with the matching equipment we make, upstream and down:
Cleaners, roasters & pre-treatment before pressing.
Oil press machines — screw & bar-cage expellers.
Oil filters and refining equipment to finish the oil.
Frequently Asked Questions
What can the Integrated Bar-Cage Oil Press process?
It is suited to Peanut (groundnut), Rapeseed, Sunflower seed, Sesame and similar materials. Tell us your seed type and target product and our engineers will confirm suitability.
Is the Integrated Bar-Cage Oil Press suitable for small and medium oil mills?
Yes. It is built for small and medium operations; configuration is matched to your throughput and workshop space.
Can this press handle different oilseeds?
Yes. The Integrated Bar-Cage Oil Press presses a range of oilseeds including Peanut (groundnut), Rapeseed, Sunflower seed, Sesame. Cake thickness and pressing pressure are adjustable at the press head to suit each material.
Can the capacity, power and dimensions be customized?
Capacity, motor power and dimensions are matched to your requirement. Contact us with your throughput, material and country for the full parameter sheet.
What after-sales support do you provide?
Installation guidance, operating instructions and spare-parts support are available. Contact our engineers for details on your project.
