Do You Actually Need a Refinery?
Before discussing cost, verify you need a refinery. Many buyers invest in refinery capacity they don't immediately need — and others under-invest then can't access the markets they planned for.
You Need a Refinery If:
- Selling to retail consumers who expect neutral colour and odour
- Supplying food manufacturers (require FFA <0.2% and specific colour standards)
- Exporting — most markets require refined grade
- Competing with imported refined cooking oil on supermarket shelves
- Your crude oil has high FFA (>1.5%) from delayed processing or poor storage
You Don't Need One Yet If:
- Selling natural cold-pressed artisan oil (natural flavour is a feature)
- Selling crude oil to a downstream refinery
- Supplying traditional markets comfortable with crude/unrefined oil
- Just starting — add refinery once pressing operation is profitable
- Your volume is <1 TPD and customers accept traditional unrefined product
Batch Refinery Cost Breakdown
The batch refinery is the most common first refinery investment. It processes oil in discrete batches through 4–5 vessels sequentially, making it flexible, simple to operate, and relatively inexpensive.
What "Batch" Means Operationally
Oil is loaded into the degumming vessel, processed, pumped to the neutralizing vessel, then bleaching, then deodorizing — each stage takes 1–2 hours. One complete DBDW (degum-bleach-deodorize-wash) cycle takes 6–8 hours per batch. A 3T/batch refinery running 2 cycles/day processes approximately 5–6 tonnes of refined oil daily.
| Batch Size | Suitable Pressing Output | Equipment FOB China | With Shipping | Full Turnkey |
|---|---|---|---|---|
| 1.5T/batch | Up to 10 TPD pressing | $8,000–$12,000 | $10,000–$15,000 | $14,000–$20,000 |
| 2T/batch | Up to 15 TPD pressing | $12,000–$18,000 | $14,000–$22,000 | $18,000–$28,000 |
| 3T/batch | Up to 20 TPD pressing | $18,000–$26,000 | $21,000–$31,000 | $25,000–$38,000 |
| 5T/batch | Up to 30 TPD pressing | $26,000–$38,000 | $30,000–$45,000 | $35,000–$55,000 |
Important caveat on "turnkey" quotes: Always verify that refinery capacity matches pressing line output. A common buyer mistake is accepting a "30 TPD turnkey plant" quote that includes only a 1.5T/batch refinery — this creates a throughput bottleneck (1.5T/batch × 3 batches/day = 4.5T/day refined capacity vs 5.5T/day pressing output). Specify the refinery batch size explicitly and calculate whether it can process your full daily press output.
What a Complete Batch Refinery Includes
Degumming Vessel
With heating coils, agitator, drain valve. Removes phospholipids and mucilaginous matter.
Neutralizing Vessel
With NaOH dosing system, agitator. Reduces free fatty acid (FFA) to <0.5%.
Washing & Dehydration Vessel
With vacuum system, heating. Removes soap stock and residual water.
Bleaching Vessel
With vacuum, bleaching earth dosing system, agitator. Removes colour and residual impurities.
Deodorizing Vessel
With high-pressure steam injection, vacuum. Removes odour compounds and remaining FFA.
Ancillary Systems
Vacuum pump, steam generator (0.3–1T/h), plate filter press, heat exchangers, control panel.
Typical batch refinery floor space: 80–150 m² for 1.5–5T/batch units. Minimum ceiling height: 4 metres (the deodorizing vessel is typically 4–6 metres tall in batch configuration).
Semi-Continuous Refinery Cost
Semi-continuous refining offers the best balance of capital cost and output quality for 20–50 TPD operations. The process: batch neutralizing but continuous bleaching and deodorizing — higher quality than full batch, substantially lower capital than continuous.
| Capacity | Equipment FOB China | Total Delivered & Installed | Recommended For |
|---|---|---|---|
| 20 TPD | $38,000–$60,000 | $55,000–$90,000 | 15–25 TPD pressing output |
| 30 TPD | $55,000–$80,000 | $75,000–$120,000 | 25–35 TPD pressing output |
| 50 TPD | $80,000–$120,000 | $110,000–$170,000 | 40–55 TPD pressing output |
Semi-continuous refineries are best suited for operations with consistent single-oil-type throughput and export quality requirements. They are not recommended for first-time operators due to the more complex process monitoring requirements compared to batch systems.
Continuous Refinery Cost
For 50+ TPD operations requiring 24/7 production, continuous refineries eliminate the batch cycle — all stages operate simultaneously with product flowing continuously through the system.
| Capacity | Equipment FOB | Engineering & Design | Total Delivered |
|---|---|---|---|
| 50 TPD | $120,000–$180,000 | +$20,000 | $170,000–$250,000 |
| 100 TPD | $250,000–$380,000 | +$40,000 | $350,000–$520,000 |
| 200 TPD | $400,000–$600,000 | +$60,000 | $550,000–$800,000 |
What Continuous Refinery Adds Over Batch
- Continuous vacuum bleacher with automated spent earth removal
- Packed column or tray-type continuous deodorizer — taller (8–12m), higher throughput
- Niagara leaf filter (for spent bleaching earth — much faster than plate filter press)
- Heat recovery heat exchangers — saves 30–40% energy vs batch at same throughput
- Full SCADA automation with remote monitoring capability
- CIP (clean-in-place) system for hygienic maintenance without shutdown

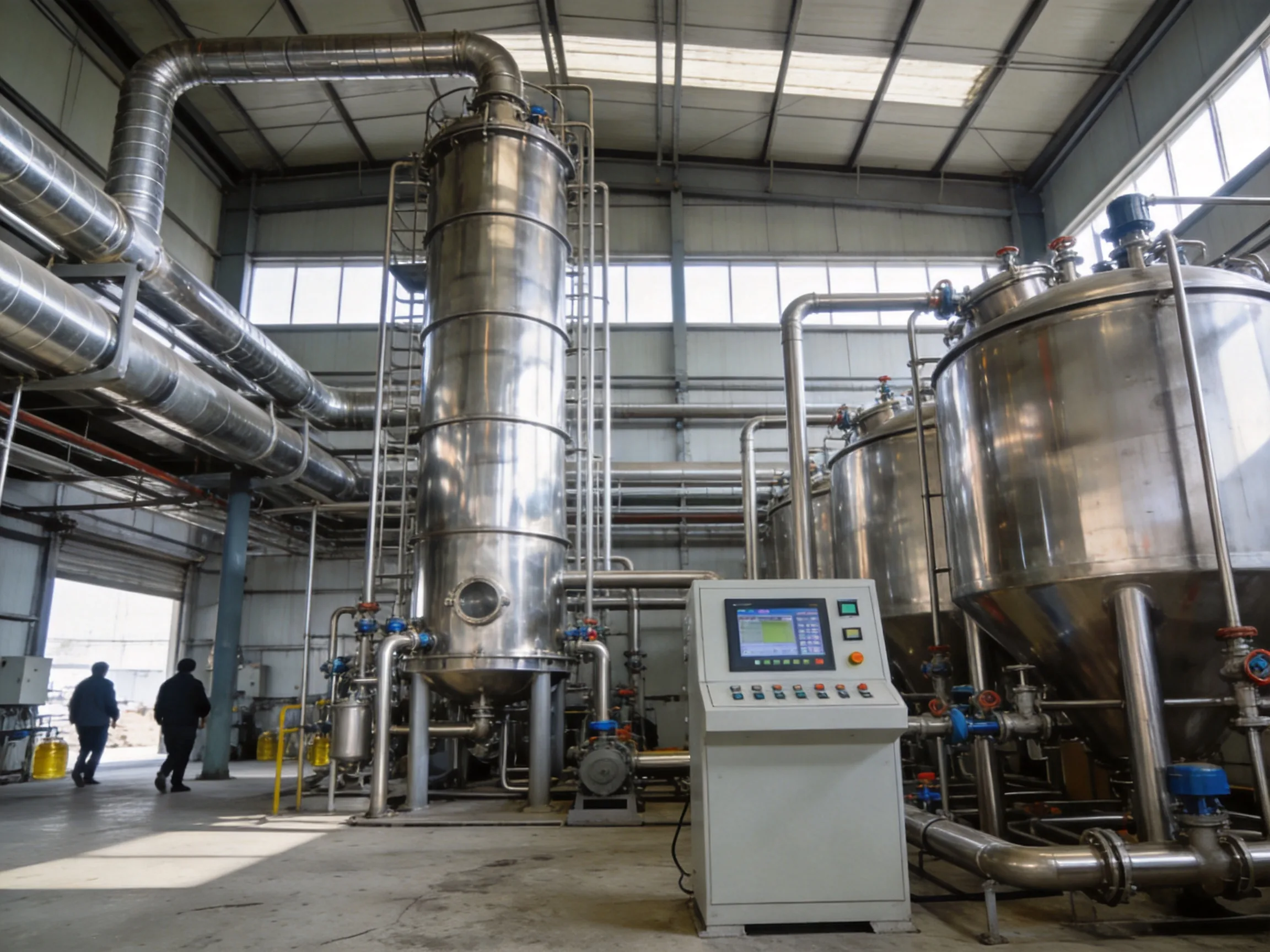

Continuous edible oil refinery deodorizing column, tall packed column vessel 10 metres high, heat exchangers, SCADA control screens, industrial stainless steel piping, professional facility photography
Video: edible-oil refinery operation (third-party).
Physical vs Chemical Refining — Cost Impact
The choice of refining method affects both capital cost and ongoing operating expenses. Not all oil types suit both methods.
| Factor | Physical Refining | Chemical Refining |
|---|---|---|
| How it works | FFA removed by steam stripping in deodorizer (no neutralizing step) | FFA neutralized with NaOH caustic soda, removed as soap stock |
| Capital saving | Eliminates neutralizing vessel — saves $5,000–$15,000 | Full vessel set required |
| Deodorizer cost | More powerful deodorizer required — $8,000–$20,000 more | Standard deodorizer |
| Net capital effect | Similar total capital | Similar total capital |
| Caustic soda cost | None — no NaOH used | $0.50–$1.50/tonne oil (ongoing) |
| Best for | Palm oil, coconut oil, rice bran oil | Soybean, sunflower, peanut, rapeseed |
| FFA tolerance | Works well with high FFA crude (>3%) | Best with low-medium FFA crude (<3%) |
Refinery Operating Costs
Operating cost per tonne of refined oil output is relatively stable across refinery sizes — the main variables are energy prices and chemical input costs in your local market.
The table below is based on a 3T/batch refinery processing 20 TPD of soybean oil at standard commodity chemical prices.
| Operating Item | Quantity per Tonne | Unit Price | Cost per Tonne Refined |
|---|---|---|---|
| Activated bleaching earth | 1.2% of oil weight (12 kg) | $400/tonne | $4.80 |
| NaOH caustic soda (30°Bé) | ~10 kg | $300/tonne | $3.20 |
| Steam for deodorizing | 600 kg | $0.04/kg | $24.00 |
| Electricity | 25 kWh | $0.08/kWh | $2.00 |
| Filter cloths, miscellaneous | — | — | $1.50 |
| Total operating cost | — | — | ~$35–$45/tonne |
Value-add comparison: Refined soybean oil typically sells at $200–$350/tonne premium over crude soybean oil. At $35–$45/tonne operating cost, the refinery captures $155–$305/tonne net margin on refinement. This is one of the highest-ROI steps in the entire processing chain.
ROI Analysis for Batch Refinery
The ROI calculation for refinery investment is compelling at almost any scale. Here is a worked example based on a 30 TPD soybean plant adding a 3T/batch refinery.
Example: 30 TPD Soybean Plant — Adding a 3T/Batch Refinery
This makes a batch refinery one of the highest-ROI capital investments available in edible oil processing — typically paying back in 30–90 days at commercial operating scale.
